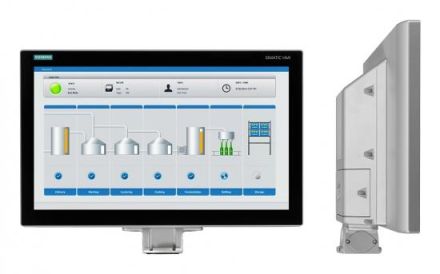

Siemens 6AV2124-0UC24-1AX0 SIMATIC HMI TP1900 Comfort Pro Comfort Panel

Siemens 6AV2124-0UC24-1AX0 SIMATIC HMI TP1900 Comfort Pro Comfort Panel

In stock

SKU: 775006

Price on request

€5,595.79

€0

Overview

SIMATIC HMI TP1900 Comfort Pro for stand (extendable, flange below), Comfort Panel, touch operation, 19 widescreen TFT display 16 million colors, PROFINET interface, MPI/PROFIBUS DP interface, 24 MB configuration memory, WEC 2013, configurable from WinCC Comfort V14 SP1 with HSP The Comfort Panels are designed for the implementation of powerful visualization tasks in the machine-related area. The Comfort Panels PRO are a device series with a high protection class IP65 (NEMA4) and flexible installation options - directly on the machine using special adapters, on a stand or on a support arm system.

Property	Value
Supply voltage for DC:	19.2 to 28.8 V
Protection class (IP), front:	IP65
Usable project memory/user memory:	24000 kByte
Number of HW interfaces Industrial Ethernet:	2
Number of HW interfaces USB:	2
Number of HW interfaces serial RS-485:	1
Type of supply voltage:	DC
Display design:	TFT
Screen diagonal:	18.5 inches
With color display:	yes
With alpha keyboard:	yes
With numeric keyboard:	yes
Number of PROFINET interfaces:	2
Width of the front:	462 mm
Height of the front:	296 mm
Installation depth:	101 mm
Operating temperature:	0 to 45 °C
IO-Link Master:	no
Supports protocol for ASI:	no
Supports protocol for SUCONET:	no
Supports protocol for AS-Interface Safety at Work:	no
Supports protocol for Foundation Fieldbus:	no
Mounting rail mounting possible:	no
Supports protocol for Data-Highway:	no
Supports protocol for other bus systems:	yes
Supports protocol for PROFINET IO:	yes
Supports protocol for PROFIBUS:	yes
Supports protocol for DeviceNet Safety:	no
Supports protocol for KNX:	no
Supports protocol for PROFINET CBA:	no
Wall/direct mounting possible:	no
Wireless standard WLAN 802.11:	no
Wireless standard Bluetooth:	no
Supports protocol for CAN:	no
Supports protocol for INTERBUS-Safety:	no
Supports protocol for INTERBUS:	no
Suitable for safety functions:	no
Supports protocol for TCP/IP:	yes
Supports protocol for SERCOS:	no
Supports protocol for DeviceNet:	no
Supports protocol for SafetyBUS p:	no
Supports protocol for MODBUS:	yes
Supports protocol for PROFIsafe:	no
Supports protocol for EtherNet/IP:	yes
Number of colors of the display:	16777216
Number of pixels, horizontal:	1366
Number of pixels, vertical:	768
With message display:	yes
With message system (incl. Buffer and acknowledgement):	yes
Process value display (output) possible:	yes
Process value specification (input) possible:	yes
With recipes:	yes
Number of levels, password protection:	50
With printout:	yes
Number of online languages:	32
Additional software components, loadable:	yes
With software interfaces:	no
Supports protocol for LON:	no
Radio standard GPRS:	no
Radio standard GSM:	no
Radio standard UMTS:	no
