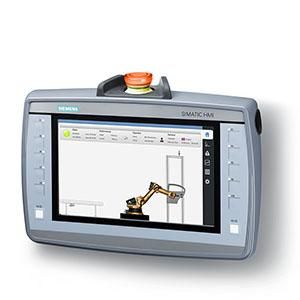

Siemens 6AV2125-2JB23-0AX0 Basic panel SIMATIC HMI KTP900F Mobile 9.0 T FT-Disp

Siemens 6AV2125-2JB23-0AX0 Basic panel SIMATIC HMI KTP900F Mobile 9.0 T FT-Disp

In stock

SKU: 352373

Price on request

€4,512.59

€0

Overview

SIMATIC HMI KTP900F Mobile, 9.0' TFT display, 800x 480 pixels, 16m colors, button and touch operation, 10 function keys, 1x PROFINET/Industrial Ethernet interface, 1x multimedia card, 1x USB, key switch, enabling button, emergency stop/STOP button, configurable from WinCC Comfort V13 SP1 SIMATIC HMI KTP900F Mobile, 9.0' TFT display, 800x 480 pixels, 16m colors, button and touch operation, 10 function keys, 1x PROFINET/Industrial Ethernet interface, 1x multimedia card, 1x USB, key switch, enabling button, emergency stop/STOP button, configurable from WinCC Comfort V13 SP1 SIMATIC HMI Mobile Panel KTP900F Mobile

Property	Value
Number of PROFINET interfaces:	1
Screen diagonal:	9 inches
Wireless standard Bluetooth:	no
Wireless standard WLAN 802.11:	no
Suitable for EMERGENCY STOP:	yes
Suitable for safety functions:	yes
IO-Link Master:	no
Supports protocol for ASI:	no
Supports protocol for AS-Interface Safety at Work:	no
Supports protocol for CAN:	no
Supports protocol for Data-Highway:	no
Supports protocol for DeviceNet:	no
Supports protocol for DeviceNet Safety:	no
Supports protocol for EtherNet/IP:	yes
Supports protocol for Foundation Fieldbus:	no
Supports protocol for INTERBUS:	no
Supports protocol for INTERBUS-Safety:	no
Supports protocol for KNX:	no
Supports protocol for MODBUS:	yes
Supports protocol for PROFIBUS:	no
Supports protocol for PROFINET CBA:	no
Supports protocol for PROFINET IO:	yes
Supports protocol for PROFIsafe:	yes
Supports protocol for SafetyBUS p:	no
Supports protocol for SERCOS:	no
Supports protocol for other bus systems:	no
Supports protocol for SUCONET:	no
Supports protocol for TCP/IP:	yes
Supply voltage for DC:	19.2 to 28.8 V
With color display:	yes
Number of colors of the display:	16777216
Number of pixels, horizontal:	800
Number of pixels, vertical:	480
With touchscreen:	yes
Number of function keys, programmable:	10
With Alpha Keyboard:	no
With consent button/dead man button:	yes
Usable project memory/user memory:	12000 kByte
With message display:	yes
With message system (incl. Buffer and acknowledgement):	yes
Process value display (output) possible:	yes
Process value specification (input) possible:	yes
With recipes:	yes
Number of levels, password protection:	50
With printout:	no
Number of online languages:	32
Supports protocol for LON:	no
Number of HW interfaces Industrial Ethernet:	1
Number of HW interfaces USB:	1
Connection, pluggable:	yes
Height:	224 mm
Width:	307.5 mm
Depth:	91 mm
Operating temperature:	0 to 45 °C
Type of supply voltage:	DC
Max. Drop height, according to IEC 60068-2-32:	1.2 m
Weight:	1.6 kg
Protection class (IP):	IP65
Number of buttons with LED:	10
Wireless standard GPRS:	no
Wireless standard GSM:	no
Wireless standard UMTS:	no
