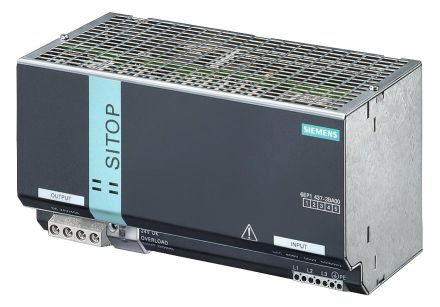

Siemens 6EP1437-3BA00-8AA0 SITOP modular plus 40 load power supply

In stock
SKU: 890796
€605.91
Into a basketIn the basketGo

Overview

SITOP modular plus 40 A Regulated power supply Input: 3 AC 400-500 V Output: DC 24 V/40 A Version with protective coating The 3-phase SITOP modular are technology power supplies for sophisticated solutions and offer maximum functionality for use in complex systems and machines. The input range enables connection to many networks around the world and ensures high levels of safety even with large voltage fluctuations. The power boost briefly delivers up to three times the rated current. In the event of an overload, you can choose between constant current or storage shutdown. The high efficiency keeps energy consumption and heat development in the control cabinet low and the compact metal housing also saves space. The version with the protective coating has improved resistance to extreme air pollution such as condensation, dust and ESD pollution, etc. To further increase the 24 V availability, the SITOP modular power supplies can be combined with buffer, DC UPS, redundancy and selectivity modules. No matter what industry, no matter what requirements - Siemens offers reliable and efficient power supplies for every system.

Property Value
Installation height: 225 mm
1. Output voltage: 24 V
Type of supply voltage: AC
Max. Output current 1: 40 A
Output voltage adjustable: yes
Rated supply voltage at AC 50 Hz: 400 V
Rated supply voltage at AC 60 Hz: 500 V
Short-circuit proof: yes
Stabilized: yes
Direct mounting possible: no
Output voltage regulated: yes
Power output: 960 W
Suitable for series installation: yes
Rail mounting possible: yes
Wall mounting possible: no
Protection class (IP): IP20
Width: 240 mm
Height: 125 mm
Depth: 125 mm
Nominal output voltage 1: 24 V
Nominal output current 1: 40 A
Installation width: 240 mm

Characteristics

Type of voltage of the supply voltageAC
Short circuit proofYes
HAB6EP1437-3BA00-8AA0 SITOP modular plus 40
ManufacturerSIEMENS
HAN6EP1437-3BA00-8AA0
GTIN4025515152361
Width240 mm
Installation width240 mm
Installation height225 mm
Suitable for series installationYes
Height125 mm
IP protection)IP20
Depth125 mm
Mounting rail possibleYes
