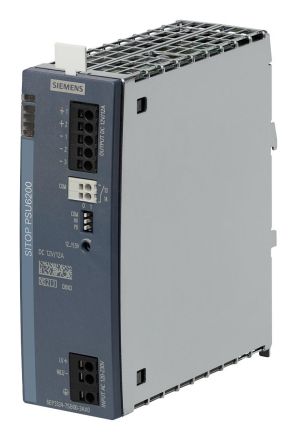

Siemens 6EP3324-7SB00-3AX0 SITOP PSU6200 12V/12A power supply

In stock
SKU: 774839
€242.21
Into a basketIn the basketGo

Overview

SITOP PSU6200 12 V/12 A Regulated power supply Input: AC 120 - 230 V (DC 120 - 240 V) Output: DC12 V/12 A with diagnostic interface The 1-phase SITOP PSU6200 are technology power supplies for sophisticated solutions and offer maximum functionality for use in complex systems and machines. The wide-range input enables connection to any network in the world and ensures high levels of safety even with large voltage fluctuations. The extra power supplies up to 150% of the rated current for a short time. In the event of an overload, the PSU6200 supplies constant current up to a voltage of 9 V DC. The very high efficiency keeps energy consumption and heat generation in the control cabinet low and the compact metal housing also saves space. To further increase the 12 V availability, the SITOP PSU6200 power supplies can be combined with redundancy modules. No matter what industry, no matter what requirements - Siemens offers reliable and efficient power supplies for every system.

Feature Value
Installation height: 225 mm
1. Output voltage: 12 V
Type of supply voltage: AC/DC
Max. Output current 1: 12 A
Output voltage adjustable: yes
Rated supply voltage at AC 50 Hz: 240 V
Rated supply voltage at DC: 110 to 240 V
Rated supply voltage at AC 60 Hz: 120 V
Short-circuit proof: yes
Stabilized: yes
Direct mounting possible: no
Output voltage regulated: yes
Power output: 144 W
Suitable for series installation: yes
Rail mounting possible: yes
Wall mounting possible: no
Protection class (IP): IP20
Width: 45 mm
Height: 135 mm
Depth: 125 mm
Nominal output voltage 1: 12 V
Nominal output current 1: 12 A
Installation width: 45 mm

Characteristics

Type of voltage of the supply voltageAC/DC
Rated supply voltage for DC110 to 240 V
Short circuit proofYes
HABSITOP PSU6200 12V/12A
ManufacturerSIEMENS
HAN6EP3324-7SB00-3AX0
GTIN4025515155195
Width45 mm
Installation width45 mm
Installation height225 mm
Suitable for series installationYes
Height135 mm
IP protection)IP20
Depth125 mm
Mounting rail possibleYes
