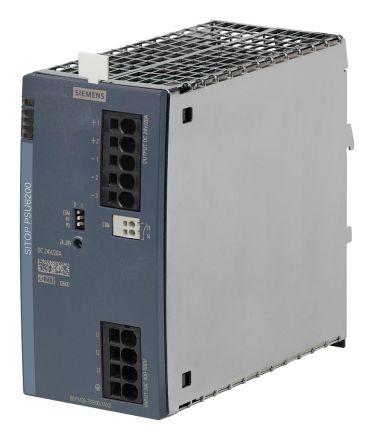

Siemens 6EP3436-7SB00-3AX0 SITOPPSU6200 3-phase DC24V/20A power supply

In stock

SKU: 774820

Price on request

€258.22

€0

Overview

The new 3-phase Sitop PSU6200 power supplies are very slim and have a diagnostic interface for efficient condition monitoring in the PLC.

Property	Value
Installation height:	225 mm
1. Output voltage:	24 V
Type of supply voltage:	AC/DC
Max. Output current 1:	20 A
Output voltage adjustable:	yes
Short-circuit proof:	yes
Stabilized:	yes
Direct mounting possible:	no
Output voltage regulated:	yes
Power output:	480 W
Suitable for series installation:	yes
Rail mounting possible:	yes
Wall mounting possible:	no
Protection class (IP):	IP20
Width:	70 mm
Height:	135 mm
Depth:	155 mm
Nominal value output voltage 1:	24 V
Nominal value output current 1:	20 A
Installation width:	70 mm
