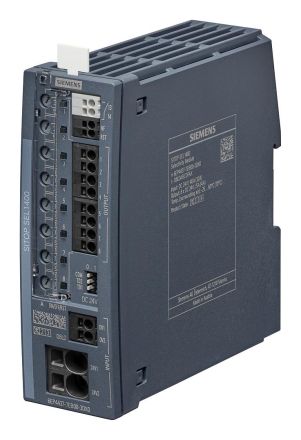

Siemens 6EP4437-7EB00-3DX0 SITOP SEL1400, DC 24 V/8 x 1 ... 5 A selectivity module

In stock
SKU: 774793
€252.53
Into a basketIn the basketGo

Overview

SITOP SEL1400 5 A selectivity module 8-channel with limiting characteristics Input: DC 24 V/40 A Output: DC 24 V/8x 5 A Threshold adjustable 1-5 A with monitoring interface *EX approval no longer available* The SITOP SEL1400 selectivity module is the optimal addition to all 24 V power supplies to divide the load current between several current branches and monitor it. Overload and short circuits in one or more branches are reliably detected. The electronics allow short-term current peaks, e.g. due to high inrush current, and switches branches with longer overloads off. This is ensured even on high-impedance lines and in the case of creeping short circuits. The intact branches are supplied with 24 V with absolutely no interruption or reaction, thus minimizing system downtimes. The faulty branch is signaled via LEDs on the device as well as via a common signaling contact or diagnostic monitor. No matter what industry, no matter what requirement - Siemens offers reliable and efficient power supplies for every system.

Property Value
Max. permissible response delay time: 5 s
Design of the electrical connection: Spring-loaded connection
Width: 45 mm
Height: 135 mm
Depth: 125 mm
With removable terminals: no
Contains DC voltage undercurrent function: no
Contains DC voltage overcurrent function: yes
DC window function: yes
Rated control supply voltage Us for DC: 20.4 to 30 V

Characteristics

HABSITOP SEL1400, DC 24 V/8 x 1 ... 5 A
ManufacturerSIEMENS
HAN6EP4437-7EB00-3DX0
GTIN4025515155430
Design of the electrical connectionSpring-loaded connection
Rated control supply voltage Us at DC20.4 to 30V
Width45 mm
Height135 mm
With removable clampsNo
Depth125 mm
