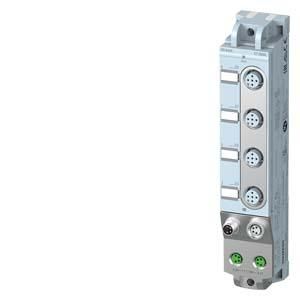

Siemens 6ES7145-5ND00-0BA0 Module SIMATIC ET 200AL AQ 4xU/I 4xM12 IP67

Siemens 6ES7145-5ND00-0BA0 Module SIMATIC ET 200AL AQ 4xU/I 4xM12 IP67

In stock

SKU: 384172

Price on request

€391.40

€0

Overview

SIMATIC ET 200AL, AQ 4xU/I, 4xM12, protection class IP67 SIMATIC ET 200AL, AQ 4xU/I, 4xM12, protection class IP67 SIMATIC ET 200 AL is an IO system in block construction with a high protection class IP65/67, a particularly compact design and low space requirements and weight. It is specially designed for distributed control electronics in confined spaces and when moving and is quickly and conveniently configured and commissioned via the TIA Portal. Standard modules can be switched off in groups for safety reasons. The peripheral modules are the interface of the SIMATIC ET 200AL to the process. They are available as digital and analog input and output modules and as mixed modules (digital). The sensors are connected via M8 or M12 connection technology. The modules can be connected to PROFINET or PROFIBUS or integrated into SIMATIC ET 200SP. SIMATIC ET 200AL - for the easiest installation anywhere

Property	Value
Degree of protection (IP):	IP65/IP67
Type of supply voltage:	DC
Height:	159 mm
Width:	30 mm
Depth:	40 mm
Output, current:	yes
Output, Voltage:	yes
Supports protocol for SafetyBUS p:	no
Wireless standard WLAN 802.11:	no
Supports protocol for DeviceNet:	no
Supports protocol for KNX:	no
Supply voltage for DC:	20.4 to 28.8 V
Supports protocol for MODBUS:	no
Supports protocol for PROFIsafe:	no
Wall/direct mounting possible:	yes
Supports protocol for EtherNet/IP:	no
Front installation possible:	yes
Supports protocol for TCP/IP:	no
Rack mounting possible:	no
Supports protocol for SUCONET:	no
Resolution of the analog outputs:	16 Bit
Supports protocol for INTERBUS:	no
Supports protocol for DeviceNet Safety:	no
Wireless standard Bluetooth:	no
Supports protocol for PROFIBUS:	no
Suitable for safety functions:	no
Supports protocol for CAN:	no
Supports protocol for SERCOS:	no
IO-Link Master:	no
Supports protocol for ASI:	no
Supports protocol for Foundation Fieldbus:	no
Supports protocol for AS-Interface Safety at Work:	no
Supports protocol for PROFINET IO:	no
Supports protocol for PROFINET CBA:	no
Supports protocol for Data-Highway:	no
Supports protocol for other bus systems:	no
Output signal configurable:	yes
Mounting rail mounting possible:	yes
Field bus connection via separate bus coupler possible:	yes
Supports protocol for LON:	no
Supports protocol for INTERBUS-Safety:	no
System component:	yes
Associated equipment (Ex ia):	no
Associated equipment (Ex ib):	no
Number of analog outputs:	4
Radio standard GSM:	no
Radio standard GPRS:	no
Analog outputs configurable:	yes
Radio standard UMTS:	no
