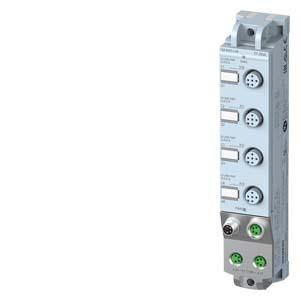

Siemens 6ES7147-5JD00-0BA0 communication module SIMATIC ET200AL

In stock
SKU: 368861
€376.90
Into a basketIn the basketGo

Overview

SIMATIC ET 200AL, CM 4x IO-Link, 4x M12, protection class IP67 SIMATIC ET 200AL, CM 4x IO-Link, 4x M12, protection class IP67 SIMATIC ET 200 AL is an IO system in block construction with a high protection class IP65/67, a particularly compact design and low space requirements and weight. It is specially designed for distributed control electronics in confined spaces and when moving and is quickly and conveniently configured and commissioned via the TIA Portal. Standard modules can be switched off in groups for safety reasons. The peripheral modules are the interface of the SIMATIC ET 200AL to the process. The communication module allows the sensors or actuators to be connected to the controller easily and economically based on the IO-Link protocol V1.1. SIMATIC ET 200AL - for the easiest installation anywhere

Property Value
Height: 159 mm
Width: 30 mm
Depth: 40 mm
Type of supply voltage: DC
Degree of protection (IP): IP65/IP67
Suitable for safety functions: no
Rack mounting possible: no
IO-Link Master: yes
Supply voltage for DC: 20.4 to 28.8 V
Wireless standard WLAN 802.11: no
Wall/direct mounting possible: yes
Front installation possible: yes
Wireless standard Bluetooth: no
System component: yes
With electrical isolation: yes
Field bus connection via separate bus coupler possible: yes
Mounting rail mounting possible: yes
Associated equipment (Ex ia): no
Associated equipment (Ex ib): no
Supports protocol for AS-Interface Safety at Work: no
Supports protocol for SERCOS: no
Supports protocol for CAN: no
Supports protocol for KNX: no
Supports protocol for EtherNet/IP: no
Supports protocol for MODBUS: no
Supports protocol for other bus systems: no
Supports protocol for PROFINET CBA: no
Supports protocol for Foundation Fieldbus: no
Supports protocol for Data-Highway: no
Supports protocol for ASI: no
Supports protocol for PROFIsafe: no
Supports protocol for DeviceNet: no
Supports protocol for SUCONET: no
Supports protocol for LON: no
Supports protocol for DeviceNet Safety: no
Radio standard GPRS: no
Wireless standard GSM: no
Supports protocol for PROFIBUS: no
Supports protocol for SafetyBUS p: no
Supports protocol for INTERBUS: no
Supports protocol for INTERBUS-Safety: no
Supports protocol for PROFINET IO: no
Wireless standard UMTS: no

Characteristics

Type of voltage of the supply voltageDC
Supports protocol for KNXNo
HABSIMATIC ET200AL
ManufacturerSIEMENS
HAN6ES7147-5JD00-0BA0
GTIN4047623403531
Width30 mm
Suitable for security functionsNo
Height159 mm
IP protection)IP65/IP67
Depth40 mm
Mounting rail possibleYes
Supports protocol for AS-Interface Safety at WorkNo
Supports protocol for ASINo
Supports protocol for CANNo
Supports data highway protocolNo
Supports protocol for DeviceNetNo
Supports protocol for DeviceNet SafetyNo
Supports protocol for EtherNet/IPNo
Supports protocol for Foundation FieldbusNo
Supports protocol for INTERBUSNo
Supports protocol for INTERBUS-SafetyNo
Supports protocol for LONNo
Supports protocol for ModbusNo
Supports protocol for PROFIBUSNo
Supports protocol for PROFINET CBANo
Supports protocol for PROFINET IONo
Supports protocol for PROFIsafeNo
Supports protocol for SERCOSNo
Supports protocol for SUCONETNo
Supports protocol for SafetyBUS pNo
Supports protocol for other bus systemsNo
