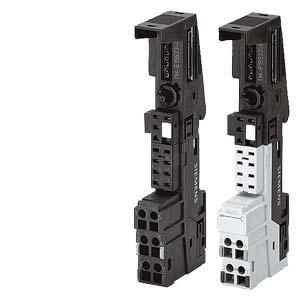

Siemens 6ES7193-4CA50-0AA0 Universal Terminal Module 6ES71934CA500AA0 TM-E15C2

In stock
SKU: 359520
€104.58
Into a basketIn the basketGo

Overview

SIMATIC DP, 5 universal terminal modules TM-E15C26-A1 for ET 200S for electronic modules 15 mm width, spring-loaded terminals, 2x6 terminal connections with terminal access to AUX1, AUX1 pulled through 5 pieces per packaging unit The SIMATIC ET 200S is a modular, scalable, decentralized I/O system that is designed especially for installation in small control boxes close to the machine. The modules can either be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS. The SIMATIC ET 200S can be expanded with up to 64 I/O modules that can be plugged in in any combination. The system offers an extensive range of modules. Many modules are also available in different versions, which significantly improves scalability in terms of functionality and price. In addition to modules with standard functionality (ST), there are also modules with an extended range of functions and diagnostics (HF High Feature/HS High Speed). The advantage of the ET 200S system is its ease of use, for example the ability to change modules and terminal boxes during operation. The so-called hot swapping significantly increases the availability and productivity of the machine.

Property Value
Type of output voltage: AC/DC
Output voltage at AC 50 Hz: 24 to 230 V
Output voltage at AC 60 Hz: 24 to 230 V
Output voltage at DC: 24 to 120 V
Input voltage at AC 50 Hz: 24 to 230 V
Input voltage at AC 60 Hz: 24 to 230 V
Input voltage at DC: 24 to 120 V
Front installation possible: no
Suitable for safety functions: no
Max. output current at AC 50 Hz: 10 A
Max. output current at AC 60 Hz: 10 A
Max. Output current at DC: 10 A
Max. input current at AC 50 Hz: 10 A
Max. input current at AC 60 Hz: 10 A
Max. Input current at DC: 10 A
Rack mounting possible: no
Wall/direct mounting possible: yes
DIN rail mounting possible: yes
Number of slots: 2
With pluggable modules, digital I/O: yes
With pluggable modules, analog I/O: yes
With pluggable modules, communication modules: yes
With pluggable modules, function and technology modules: yes
With pluggable modules, central modules: no
With pluggable modules, other: yes
With integrated power supply: no
Type of input voltage: AC/DC
System component: yes
Associated equipment (Ex ia): no
Associated equipment (Ex ib): no
Explosion protection category for gas: ATEX gas explosion protection, cat. 3G
Width: 15 mm
Height: 157 mm
Depth: 43 mm

Characteristics

HAB6ES71934CA500AA0 TM-E15C2
ManufacturerSIEMENS
HAN6ES7193-4CA50-0AA0
GTIN4025515051732
Width15 mm
Explosion protection category for gasATEX gas explosion protection, cat. 3G
Suitable for security functionsNo
Height157 mm
Depth43 mm
Mounting rail possibleYes
