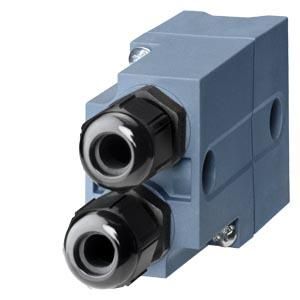

Siemens 6ES7194-6CA00-0AA0 Terminal block

In stock

SKU: 359469

Price on request

€103.48

€0

Overview

SIMATIC DP, PROFINET terminal block for ET 200ECO PN, 10A SIMATIC ET 200eco is a compact block peripheral with PROFIBUS connection in protection class IP65/67 for installation directly on the machine without a control cabinet. The fully encapsulated housing makes the ET 200eco mechanically very robust and resistant to vibrations, dust and moisture! Due to its excellent robustness, it can be used in a wide range of applications, particularly in mechanical engineering and the automotive industry, and especially on tool changing machines. Accessories for SIMATIC ET 200eco PN

Property	Value
Type of output voltage:	DC
Output voltage for DC:	20.4 to 28.8 V
Input voltage for DC:	20.4 to 28.8 V
Front installation possible:	no
Suitable for safety functions:	no
Max. Output current at DC:	10 A
Max. Input current at DC:	10 A
Rack mounting possible:	no
Wall/direct mounting possible:	yes
DIN rail mounting possible:	yes
With plug-in modules, digital I/O:	yes
With plug-in modules, analog I/O:	yes
With plug-in modules, communication modules:	yes
With plug-in modules, function and. Technology modules:	yes
With pluggable modules, central modules:	no
With pluggable modules, other:	yes
With integrated power supply:	no
Type of input voltage:	DC
System component:	yes
Associated equipment (Ex ia):	no
Associated equipment (Ex ib):	no
Width:	30 mm
Height:	50 mm
Depth:	98 mm
