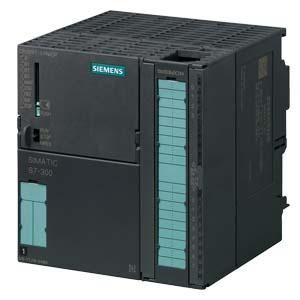

Siemens 6ES7315-7TJ10-0AB0 central module S7-300 CPU 315T-3

In stock
SKU: 340408
€5,875.33
Into a basketIn the basketGo

Overview

SIMATIC S7-300, CPU 315T-3 PN/DP, central module for PLC and technology tasks, 384 KByte RAM, 1. SS MPI/DP 12MBit/s, 2. SS DP (Drive), 3. SS Ethernet PROFINET with 2 port switch, integrated I/O for technology, front connector (1x 40-pin) and micro memory card min. 8 MB required Powerful, compact and economical. The SIMATIC S7-300 enables a space-saving and modular design. The diverse range of modules can be used task-specifically for central expansions or the construction of decentralized structures and enables cost-effective spare parts storage. SIMATIC is known for continuity and quality. Do you want to continue to use the investment in your machines and systems? Even more power and performance for your machine The innovative SIMATIC S7-1500 is the successor to the SIMATIC S7-300. This generation of controllers integrates the latest and future-proof technologies into the automation system, with improved system properties. Together with the TIA Portal engineering system, the common engineering for all SIMATIC controllers, you are well prepared for ever faster market changes, ever shorter product life cycles and increasing competition and cost pressure. Information on the product life cycle: The SIMATIC S7-300 / ET 200M system families will generally be available until 2023 as part of our established product range. With the publication of a product discontinuation declaration, the respective products will be available as spare parts for a further 10 years.

Property Value
Height: 125 mm
Width: 120 mm
Depth: 130 mm
Wireless standard WLAN 802.11: no
With display: no
Wireless standard Bluetooth: no
Suitable for safety functions: no
Number of PROFINET interfaces: 1
Supports protocol for INTERBUS: no
Front installation possible: no
Rack mounting possible: no
IO-Link Master: no
Redundancy capability: yes
Type of supply voltage: DC
Supply voltage for DC: 19.2 to 28.8 V
Memory type: RAM
Wall/direct mounting possible: no
System component: yes
Rail mounting possible: yes
Processing time (1K, binary instruction): 0.05 ms
Supports protocol for DeviceNet Safety: no
Supports protocol for CAN: no
Supports protocol for SERCOS: no
Supports protocol for KNX: no
Supports protocol for SUCONET: no
Supports protocol for SafetyBUS p: no
Supports protocol for MODBUS: no
Supports protocol for PROFINET IO: yes
Supports protocol for EtherNet/IP: no
Supports protocol for Foundation Fieldbus: no
Supports protocol for DeviceNet: no
Supports protocol for PROFIsafe: no
Supports protocol for AS-Interface Safety at Work: no
Supports protocol for Data-Highway: no
Supports protocol for PROFINET CBA: no
Supports protocol for other bus systems: no
Supports protocol for TCP/IP: yes
Supports protocol for PROFIBUS: yes
Supports protocol for INTERBUS-Safety: no
Supports protocol for ASI: no
Supports protocol for LON: no
Design: compact
Memory size: 384 kByte
Number of HW interfaces Industrial Ethernet: 1
Number of HW interfaces serial RS-485: 2
With optical interface: no
Program memory expansion possible: no
Associated equipment (Ex ia): no
Associated equipment (Ex ib): no
Wireless standard GSM: no
Number of digital inputs: 4
Wireless standard GPRS: no
Number of digital outputs: 8
Wireless standard UMTS: no

Characteristics

Type of voltage of the supply voltageDC
Supports protocol for KNXNo
With optical interfaceNo
HAB6ES7315-7TJ10-0AB0 S7-300 CPU 315T-3
ManufacturerSIEMENS
HAN6ES7315-7TJ10-0AB0
GTIN4025515082552
VersionCompact
Width120 mm
Suitable for security functionsNo
Height125 mm
With displayNo
Depth130 mm
Mounting rail possibleYes
Supports protocol for AS-Interface Safety at WorkNo
Supports protocol for ASINo
Supports protocol for CANNo
Supports data highway protocolNo
Supports protocol for DeviceNetNo
Supports protocol for DeviceNet SafetyNo
Supports protocol for EtherNet/IPNo
Supports protocol for Foundation FieldbusNo
Supports protocol for INTERBUSNo
Supports protocol for INTERBUS-SafetyNo
Supports protocol for LONNo
Supports protocol for ModbusNo
Supports protocol for PROFIBUSYes
Supports protocol for PROFINET CBANo
Supports protocol for PROFINET IOYes
Supports protocol for PROFIsafeNo
Supports protocol for SERCOSNo
Supports protocol for SUCONETNo
Supports protocol for SafetyBUS pNo
Supports protocol for TCP/IPYes
Supports protocol for other bus systemsNo
