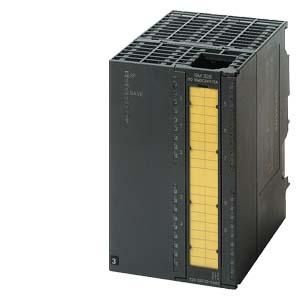

Siemens 6ES7326-2BF41-0AB0 Digital output SM 326 SIMATIC S7

In stock
SKU: 330872
€1,698.30
Into a basketIn the basketGo

Overview

SIMATIC S7, digital output SM 326, F-DO 8xDC 24V/2A PM fail-safe digital output PM switching, up to category 4 (EN 954-1) / SIL3 (IEC61508) /PLE (ISO13849), 1x 40-pin The SIMATIC ET 200M is a modular and universally applicable I/O system for the control cabinet in IP20, which can be used both as a central I/O on an S7-300, and in a decentralized configuration on a PROFINET or PROFIBUS ET 200M interface module. Up to 12 IO modules can be plugged into each station. The standardized structure of all modules significantly simplifies logistics and spare parts management. The ET 200M can be used for both standard and safety-related applications. Up to 12 high-channel signal (e.g. 64 digital inputs) and function modules as well as communication processors of the S7-300 can be used as peripheral modules (the interface to the process). The ET 200M also supports modules with extended user data, such as HART modules with HART auxiliary variables. For easy wiring, the ET 200M offers you Fast Connect, a quick connection technology that does not require stripping, in addition to conventional connection technologies.

Property Value
Number of digital outputs: 8
Redundancy capability: yes
Output current: 2 A
Supply voltage for DC: 20.4 to 28.8 V
Height: 125 mm
Width: 80 mm
Depth: 120 mm
Type of supply voltage: DC
Type of output voltage: DC
Permissible voltage at the output: 0 to 28.8 V
Performance level according to EN ISO 13849-1: Level e
Suitable for safety functions: yes
Short-circuit protection, outputs available: yes
Associated equipment (Ex ia): no
Associated equipment (Ex ib): no
Digital outputs configurable: yes
SIL according to IEC 61508: 3

Characteristics

Type of voltage of the supply voltageDC
Output current2 A
HAB6ES7326-2BF41-0AB0 SM 326 SIMATIC S7
ManufacturerSIEMENS
HAN6ES7326-2BF41-0AB0
GTIN4025515078241
Width80 mm
Suitable for security functionsYes
Height125 mm
Performance Level according to EN ISO 13849-1Level e
SIL according to IEC 615083
Depth120 mm
