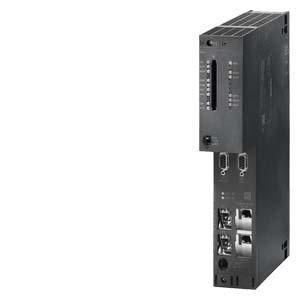

Siemens 6ES7417-5HT06-0AB0 central module

In stock

SKU: 354127

Price on request

€25,350.08

€0

Overview

SIMATIC S7-400H, CPU 417-5H, CENTRAL PROCESSING UNIT FOR S7-400H AND S7-400F/FH, 5 INTERFACES: 1X MPI/DP,1X DP, 1X PN AND 2 FOR SYNC MODULES, 32 MB MEMORY (16 MB DATA/16 MB PROGRAM) SIMATIC S7-400H, CPU 417-5H, CENTRAL PROCESSING UNIT FOR S7-400H AND S7-400F/FH, 5 INTERFACES: 1X MPI/DP,1X DP, 1X PN AND 2 FOR SYNC MODULES, 32 MB MEMORY (16 MB DATA/16 MB PROGRAM) SIMATIC S7-400 central processing unit CPU 417-5H PN/DP 32 MB

Property	Value
Height:	290 mm
Width:	50 mm
Depth:	219 mm
Wireless standard WLAN 802.11:	no
With display:	no
Wireless standard Bluetooth:	no
Suitable for security functions:	yes
Number of PROFINET interfaces:	2
Supports protocol for INTERBUS:	no
Front installation possible:	no
Rack mounting possible:	no
Performance level according to EN ISO 13849-1:	Level e
IO-Link Master:	no
Redundancy capability:	yes
Voltage type of Supply voltage:	AC/DC
Memory type:	RAM
Wall/direct mounting possible:	no
System component:	yes
Rail mounting possible:	no
Processing time (1K, binary instruction):	0.0075 ms
Supports protocol for DeviceNet Safety:	no
Supports protocol for CAN:	no
Supports protocol for SERCOS:	no
Supports protocol for KNX:	no
Supports protocol for SUCONET:	no
Supports protocol for SafetyBUS p:	no
Supports protocol for MODBUS:	no
Supports protocol for PROFINET IO:	yes
Supports protocol for EtherNet/IP:	no
Supports protocol for Foundation Fieldbus:	no
Supports protocol for DeviceNet:	no
Supports protocol for PROFIsafe:	yes
Supports protocol for AS-Interface Safety at Work:	no
Supports protocol for Data-Highway:	no
Supports protocol for PROFINET CBA:	no
Supports protocol for other bus systems:	no
Supports protocol for TCP/IP:	yes
Supports protocol for PROFIBUS:	yes
Supports protocol for INTERBUS-Safety:	no
Supports protocol for ASI:	no
Supports protocol for LON:	no
Design:	modular
Memory size:	32000 kByte
Number of HW interfaces Industrial Ethernet:	2
Number of HW interfaces serial RS-485:	2
Number of HW interfaces other:	2
With optical interface:	no
Program memory expansion possible:	no
Associated equipment (Ex ia):	no
Associated equipment (Ex ib):	no
Wireless standard GSM:	no
Radio standard GPRS:	no
SIL according to IEC 61508:	3
Radio standard UMTS:	no
