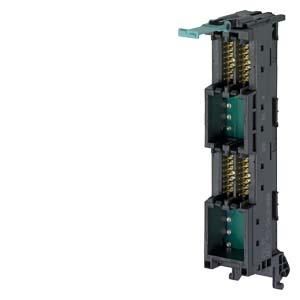

Front connector module with 4x16-pin IDC connection for analog 40-pin I/O modules of the S7-1500 Potential supply via feed element The front connector module for SIMATIC S7-1500 for connecting 16-pin connecting cables is a modified front connector for connecting to an analog I/O module. This is plugged into the module to be wired instead of the front connector. The feed element and the connecting cables are plugged in here and connected to the connection module. This modified front connector module is part of the fully modular connection of SIMATIC TOP connect for the fastest and safest system cabling. In addition to a low wiring effort, sources of error in the cabling can be significantly reduced. Analog signals from the peripherals are connected to the SIMATIC TOP connect connection modules and connected to the SIMATIC S7-1500 via a connecting cable and front connector module.
