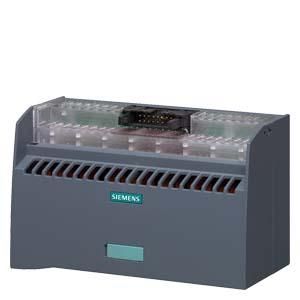

Siemens 6ES7924-0BG20-0BC0 connection module TPRI

In stock
SKU: 332724
€131.64
Into a basketIn the basketGo

Overview

TPRI connection module with relay 110V AC, output 8 make contacts DC 24 V/0.05 A Type: push-in terminal with LED, PU = 1 piece 16-pin IDC connection for cable The TPRi relay connection module with relay for connecting 8 digital input signals (110VAC) and potential feed terminals (24VDC). For potential adjustment to 24VDC input signal. With push-in terminals and LED for signaling, it forms the interface between the connection cables of the I/O brought in from the field and the SIMATIC S7. This is mounted on the DIN rail and, thanks to its functionality with push-in terminals, is precisely adapted to the respective task. This connection module is part of the fully modular connection of SIMATIC TOP connect for the fastest and safest system cabling. In addition to low wiring effort, sources of error in cabling can be significantly reduced. Sensors from the periphery are connected to the connection modules of SIMATIC TOP connect and connected to the SIMATIC S7-300/1500 via a connecting cable and front connector module.

Property Value
Connectable conductor cross-section, finely stranded with wire end ferrule: 0.199999999 to 2.5 mm²
Connectable conductor cross-section, finely stranded without wire end ferrule: 0.199999999 to 2.5 mm²
Rated current In: 1 A
Connectable conductor cross-section, stranded: 0.199999999 to 2.5 mm²
Operating temperature: 0 to 60 °C
Rated voltage: 50 V
Number of levels: 1
Design of electrical connection 1: Plug connection
Design of electrical connection 2: Penetration connection
Flammability class of the insulating material according to UL 94: V1
End plate required: no
LED switching for: PNP
With PE connection: no
With shield connection: no
With feed-in function: yes
Number of terminal points per level: 1
Levels bridged internally: no
Can be connected crosswise: no
Separation function: no
Explosion-tested version 'Ex e': no

Characteristics

HAB6ES7924-0BG20-0BC0 TPRI
ManufacturerSIEMENS
HAN6ES7924-0BG20-0BC0
GTIN4025515153733
Connectable conductor cross-section stranded0.199999999 to 2.5 mm²
Rated voltage50V
Rated current In1 A
Operating temperatur0 to 60 °C
Flammability class of the insulating material according to UL 94V1
