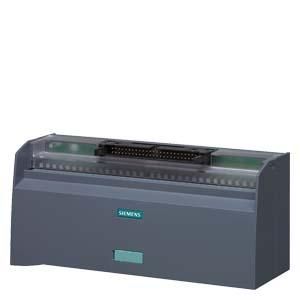

Siemens 6ES7924-2CA20-0BA0 connection module TP3

In stock
SKU: 348234
€116.45
Into a basketIn the basketGo

Overview

Connection module TP3 32 channels and 2x33 terminals for potential supply Type: screw terminal with LED, PU = 1 piece 50-pin IDC connection for cable The connection module TP3 for a 3-wire connection with 32 channels and potential connection with screw terminals with LED for signaling forms the interface between the connection cables of the I/Os brought in from the field and the SIMATIC S7. This is mounted on the top hat rail and, thanks to its functionality with screw terminals, is precisely adapted to the respective task. This connection module is part of the fully modular connection of SIMATIC TOP connect for the fastest and safest system cabling. In addition to low wiring effort, sources of error in the cabling can be significantly reduced. Sensors and actuators from the periphery are connected to the SIMATIC TOP connect connection modules and connected to the SIMATIC S7-300/1500 via a connecting cable and front connector module.

Property Value
Connectable conductor cross-section, finely stranded with wire end ferrule: 0.5 to 2.5 mm²
Rated current In: 1 A
Connectable conductor cross-section, stranded: 0.5 to 2.5 mm²
Operating temperature: 0 to 60 °C
Rated voltage: 50 V
Number of levels: 1
Design of electrical connection 1: Plug connection
Flammability class of the insulating material according to UL 94: V1
End plate required: no
With PE connection: no
With shield connection: no
With feed-in function: yes
Number of terminal points per level: 1
Levels internally bridged: no
Cross-connectable: no
Isolation function: no
Explosion-tested version 'Ex e': no

Characteristics

HAB6ES7924-2CA20-0BA0 TP3
ManufacturerSIEMENS
HAN6ES7924-2CA20-0BA0
GTIN4025515153863
Connectable conductor cross-section stranded0.5 to 2.5 mm²
Rated voltage50V
Rated current In1 A
Operating temperatur0 to 60 °C
Flammability class of the insulating material according to UL 94V1
