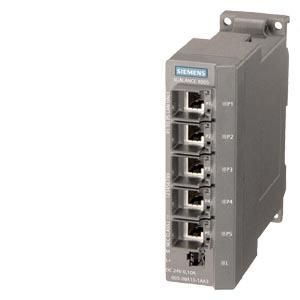

Siemens 6GK5005-0BA10-1AA3 Industrial Ethernet Switch SCALANCE X005 Entry Level 5x10/100 Mbits

In stock
SKU: 380168
€251.65
Into a basketIn the basketGo

Overview

SCALANCE X005, IE entry level switch unmanaged 5x 10/100 Mbit/s RJ45 ports, LED diagnostics, IP30, DC 24V power supply, PROFINET-compliant retaining collar, manual available for download SCALANCE X005 Unmanaged compact switch, 5x 10/100 Mbit/s RJ45 for simple machine networking Simple machine networking, use in the control cabinet. Cost-effective entry-level solution and space-saving installation in the control cabinet thanks to compact design in S7-300 format. Reliable plug connection thanks to robust, industrial-grade device connection in conjunction with PROFINET-compliant FastConnect plugs. Installation without patch panel using IE FC RJ45 Plug 180 and IE FC Standard Cable as well as use of uncrossed connection cables possible thanks to integrated autocrossover function. Diagnostics on the device via LED (power, link status, data traffic) and network load separation through integrated switch functionality. Unmanaged compact switch, DC 24 V, 5x 10/100 Mbit/s RJ45 ports electrical Extensive accessories such as SITOP PSU100C 24 V/0.6 for regulated power supply, RJ45 connector, a terminal block for signal contact and various cable variants with stripping tool round off the system. Switch to the future - SCALANCE X. SCALANCE X005 Unmanaged compact switch, 5x 10/100 Mbit/s RJ45 for simple machine networking Simple machine networking, use in the control cabinet. Cost-effective entry-level solution and space-saving installation in the control cabinet thanks to compact design in S7-300 format. Reliable plug connection thanks to robust, industrial-grade device connection in conjunction with PROFINET-compliant FastConnect plugs. Installation without patch panel using IE FC RJ45 Plug 180 and IE FC Standard Cable as well as use of uncrossed connection cables possible thanks to integrated autocrossover function. Diagnostics on the device via LED (power, link status, data traffic) and network load separation thanks to integrated switch functionality. Unmanaged compact switch, DC 24 V, 5x 10/100 Mbit/s RJ45 ports electrical Extensive accessories such as SITOP PSU100C 24 V/0.6 for regulated power supply, RJ45 connectors, a terminal block for signaling contact and various cable variants with stripping tool round off the system. Switch to the future - SCALANCE tr> Depth: 124 mm Number of 10/100 Mbps RJ45 ports: 5 Layer 2: yes Layer 3: no Manageable: no Protection class (IP): IP30

Characteristics

HABSCALANCE X005 Entry Level 5x10/100 Mbits
ManufacturerSIEMENS
HAN6GK5005-0BA10-1AA3
GTIN4047622454473
Width40 mm
Height125 mm
IP protection)IP30
Depth124 mm
Siemens 6GK5005-0BA10-1AA3 Industrial Ethernet Switch SCALANCE X005 Entry Level 5x10/100 Mbits
