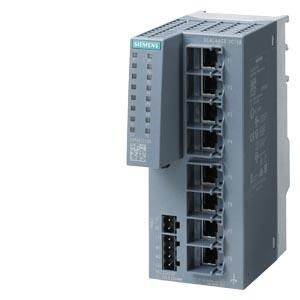

SCALANCE XC108, unmanaged IE switch, 8x 10/100 Mbit/s RJ45 ports, LED diagnostics, error reporting contact with set button, redundant power supply Manual available for download SCALANCE XC108 Unmanaged compact switch, 8x 10/100 Mbit/s RJ45 for simple machine networking Use in explosion-proof areas, in series machine construction, in public transport and in the process industry. Space-saving installation in the control cabinet thanks to compact design in S7-1500 format and mounting option on the S7-1500 profile rail. Robust, industry-standard subscriber connections with PROFINET-compliant RJ45 connectors. Redundant power supply and extended temperature range from -40°C to +70°C. Installation without patch panel possible using IE FC RJ45 Plug 180 and IE FC Standard Cable. Use of uncrossed connecting cables possible thanks to integrated autocrossover function. Clear diagnostic display on the device via LED (power, link status, data traffic) and error signaling contact with simple setting via SET button. Unmanaged compact switch, DC 24 V, 8x 10/100 Mbit/s RJ45 ports electrical Extensive accessories such as SITOP PSU100C 24 V/3 and 24 V/8 for the regulated power supply, FC FO plugs and cases for self-assembly of FO cables (ST/BFOC) for on-site assembly, RJ45 connector, SCALANCE TAP104, terminal block for signaling contact and power supply, fastening screw and various Fast Connect cable variants (also pre-assembled) with stripping tool round off the system. Switch to the future - SCALANCE X. SCALANCE XC108 Unmanaged Compact Switch, 8x 10/100 Mbit/s RJ45 for simple machine networking. Use in explosion-proof areas, in series machine construction, in public transport and in the process industry. Space-saving installation in the control cabinet thanks to compact design in S7-1500 format and mounting option on the S7-1500 profile rail. Robust, industry-standard subscriber connections with PROFINET-compliant RJ45 connectors. Redundant power supply and extended temperature range from -40°C to +70°C. Installation without patch panel possible using IE FC RJ45 Plug 180 and IE FC Standard Cable. Use of uncrossed connection cables possible thanks to integrated autocrossover function. Clear diagnostic display on the device via LED (power, link status, data traffic) and error signaling contact with simple setting via SET button. Unmanaged compact switch, DC 24 V, 8x 10/100 Mbit/s RJ45 ports electrical Extensive accessories such as SITOP PSU100C 24 V/3 and 24 V/8 for the regulated power supply, FC FO plugs and cases for self-assembly of FO cables (ST/BFOC) for on-site assembly, RJ45 connectors, SCALANCE TAP104, terminal block for signaling contact and power supply, fastening screw and various Fast Connect cable variants (also pre-assembled) with stripping tool round off the system. Switch to the future - SCALANCE tr>
Depth: | 125 mm | | Number of 10/100 Mbps RJ45 ports: | 8 |
| Layer 2: | yes |
| Layer 3: | no |
| Manageable: | no |
| Protection class (IP): | IP20 |
