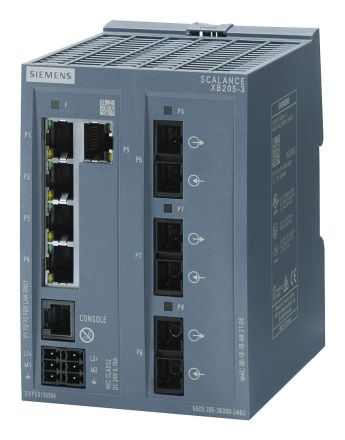

SCALANCE XB205-3 managed Layer 2 IE switch 5x 10/100 Mbit/s RJ45 ports 3x MM FO SC port 1x console port, diagnostic LED redundant power supply, IEC 62443-4-2 certified, temperature range 0°C to +60°C, DIN rail mounting, default PROFINET. SCALANCE XB205-3 Managed, Layer 2 Box Switch, 5x 10/100 Mbit/s RJ45, 3x Multimode SC for PROFINET and EtherNet/IP, default: PROFINET installation in the control cabinet for PROFINET and EtherNet/IP applications. Default PROFINET settings. Support for both industrial protocols (PROFINET and EtherNet/IP) in one device for use in real-time communication. High network availability through the creation of redundant ring structures based on High Speed Redundancy (HRP), PROFINET-compliant ring redundancy MRP, integrated redundancy manager. Support for load limitation when using multicast-based protocols and limitation of multicast and broadcast per port. Creation of virtual networks using VLAN function. Integrated web server and signaling contact for simple and quick diagnostics on the device and integration into existing network management systems through standardized SNMP access.Managed, Layer 2 Box Switch, DC 24 V, 5x 10/100 Mbit/s RJ45 ports electrical, 3x multimode SC, 1x console port, default: PROFINET.Extensive accessories such as SITOP PSU100C 24 V/0.6 A for the regulated power supply, FC FO plugs (SC), RJ45 connectors, terminal block for signaling contact and various Fast Connect cable variants (also pre-assembled) round off the system.Switch to the future - SCALANCE X.
