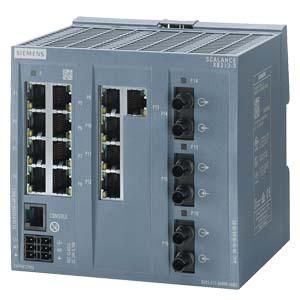

SCALANCE XB213-3 managed Layer 2 IE switch 13x 10/100 Mbit/s RJ45 ports, 3x MM FO ST port 1x console port, diagnostic LED, redundant power supply, temperature range 0°C to +60°C DIN rail mounting Default EtherNet/IP SCALANCE XB213-3 Managed, Layer 2 Box Switch, 13x 10/100 Mbit/s RJ45, 3x Multimode ST/BFOC for PROFINET and EtherNet/IP, Default: EtherNet/IP PROFINET and EtherNet/IP applications. Default EtherNet/IP settings. Support for both industrial protocols (PROFINET and EtherNet/IP) in one device for use in real-time communication. High network availability through the construction of redundant ring structures based on HRP, PROFINET-compliant ring redundancy MRP and integrated redundancy manager. Support for load limitation when using multicast-based protocols and limitation of multicast and broadcast per port. Construction of virtual networks using VLAN function. Integrated web server and signaling contact for simple and quick diagnostics on the device and integration into existing network management systems through standardized SNMP access. Managed, Layer 2 Box Switch, DC 24 V, 13x 10/100 Mbit/s RJ45 ports electrical, 3x multimode ST/BFOC, 1x console port, default: EtherNet/IP Extensive accessories such as SITOP PSU100C 24V/0.6 for the regulated power supply, FC FO plugs and cases for self-assembly of FO cables (ST/BFOC) for on-site installation, RJ45 connectors, terminal block for signaling contact and various Fast Connect cable variants (also pre-assembled) round off the system. Switch to the future - SCALANCE X. SCALANCE XB213-3 Managed, Layer 2 Box Switch, 13x 10/100 Mbit/s RJ45, 3x Multimode ST/BFOC for PROFINET and EtherNet/IP, Default: EtherNet/IP PROFINET and EtherNet/IP applications. Default EtherNet/IP Settings. Support of both industrial protocols (PROFINET and EtherNet/IP) in one device for use in real-time communication. High network availability through the creation of redundant ring structures based on HRP, PROFINET-compliant ring redundancy MRP and integrated redundancy manager. Support of load limitation when using multicast-based protocols and limitation of multicast and broadcast per port. Creation of virtual networks using VLAN function. Integrated web server and signaling contact for simple and fast diagnostics on the device and integration into existing network management systems using standardized SNMP access. Managed, Layer 2 Box Switch, DC 24 V, 13x 10/100 Mbit/s RJ45 ports electrical, 3x multimode ST/BFOC, 1x console port, default: EtherNet/IP Extensive accessories such as SITOP PSU100C 24V/0.6 for the regulated power supply, FC FO plugs and cases for self-assembly of FO cables (ST/BFOC) for on-site installation, RJ45 connectors, terminal block for signaling contact and various Fast Connect cable variants (also pre-assembled) round off the system. Switch to the future - SCALANCE >
| Depth: | 109 mm |
| Number of 10/100 Mbps RJ45 ports: | 8 |
| Layer 2: | yes |
| Layer 3: | no |
| Manageable: | yes |
| Protection class (IP): | IP20 |
| Number of 100 Mbps ST ports: | 3 |
