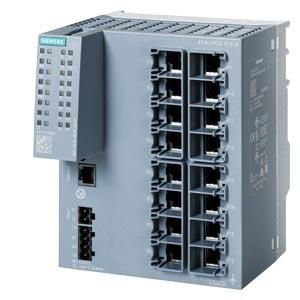

SCALANCE XC216 managed Layer 2 IE switch 16x 10/100 Mbit/s RJ45 ports 1x console port, diagnostic LED redundant power supply Temp. range -40°C to +70°C Installation: top hat/S7 profile rail/wall Redundancy functions Office features (RSTP, VLAN,...) PROFINET IO device Ethernet/IP compliant C-PLUG slot SCALANCE XC216 Managed, Layer 2 compact switch, 16x 10/100 Mbit/s RJ45 for Industrial Ethernet (PROFINET and EtherNet/IP) Can be used in a wide variety of environments: mechanical engineering, automotive industry, food and beverage industry, along rail routes or in the oil and gas industry. High operational reliability in industrial environments thanks to robust housing and robust subscriber connections, redundancy and extended temperature range. Increased system availability through redundant power supply and network structures based on HRP and MRP, standby redundancy between HRP rings, prevention of loops through STP, RSTP and MSTP as well as loop detection. In addition, simple device replacement thanks to plug-in removable medium C-PLUG. Flexible use in the automation environment thanks to extensive diagnostic options through complete integration into the PROFINET and EtherNet/IP diagnostics, SNMP access, integrated web server and automatic email sending function. Fast mobile diagnostics via smartphone or tablet in the existing WLAN using NFC. VLANs for easy structuring of large networks. Integrated configuration and diagnostics in STEP 7/TIA Portal. Filtering of multicast data traffic and limiting the load in the network. Additionally, console port for direct device access, signaling contact, grounding screw and display of extensive operating mode and status information via LEDs and selection buttons. Managed, Layer 2 compact switch, DC 24 V, 16x 10/100 Mbit/s RJ45 ports electrical, 1x console port Extensive accessories such as SITOP PSU100C 24 V/3 and 24 V/8 for the regulated power supply, FC FO plugs and cases for self-assembly of FO cables (ST/BFOC) for on-site assembly, MM FO plug sets, RJ45 connectors, SCALANCE TAP104, terminal block for signaling contact and power supply, fastening screw and port key and various Fast Connect cable variants (also pre-assembled) with stripping tool round off the system. Switch to the future - SCALANCE X. SCALANCE XC216 Managed, Layer 2 compact switch, 16x 10/100 Mbit/s RJ45 for Industrial Ethernet (PROFINET and EtherNet/IP) Can be used in a wide variety of environments: mechanical engineering, automotive industry, food and beverage industry, along rail routes or in the oil and gas industry. High operational reliability in industrial environments thanks to robust housing and robust subscriber connections, redundancy and extended temperature range. Increased system availability thanks to redundant power supply and network structures based on HRP and MRP, standby redundancy between HRP rings, prevention of loops through STP, RSTP and MSTP as well as loop detection. In addition, simple device replacement thanks to pluggable C-PLUG exchangeable medium. Flexible use in the automation environment thanks to extensive diagnostic options through full integration into PROFINET and EtherNet/IP diagnostics, SNMP access, integrated web server and automatic email sending function. Fast mobile diagnostics via smartphone or tablet in the existing WLAN using NFC. VLANs for easy structuring of large networks. Integrated configuration and diagnostics in STEP 7/TIA Portal. Filtering of multicast data traffic and limiting the load in the network. Additionally, there is a console port for direct device access, signaling contact, grounding screw and display of extensive operating mode and status information via LEDs and selection buttons. Managed, Layer 2 compact switch, DC 24 V, 16x 10/100 Mbit/s RJ45 ports electrical, 1x console port Extensive accessories such as SITOP PSU100C 24 V/3 and 24 V/8 for the regulated power supply, FC FO plugs and cases for self-assembly of FO cables (ST/BFOC) for on-site assembly, MM FO plug sets, RJ45 connectors, SCALANCE TAP104, terminal block for signaling contact and power supply, fastening screw and port key and various Fast Connect cable variants (also pre-assembled) with stripping tool round off the system. Switch to the future - SCALANCE >
| Manageable: | yes |
| Protection class (IP): | IP20 |
