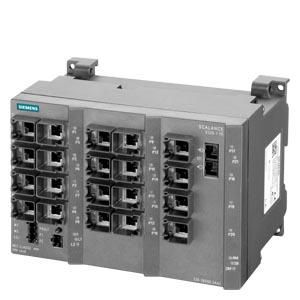

Siemens 6GK5320-1BD00-2AA3 Network Switch

SCALANCE X320-1FE managed IE switch, 20x 10/100 Mbit/s RJ45 ports, 1x 100 Mbit/s SC port multimode LED diagnostics, error reporting contact with select/set button, PROFINET IO device, network management, integrated redundancy manager, office features (RSTP, VLAN, IGMP, ..) C-PLUG included in delivery SCALANCE X320-1FE Managed, Layer 2 compact switch, 20x 10/100 Mbit/s RJ45, 1x 100 Mbit/s multimode SC for structuring larger system networks Installation in control cabinets for setting up switched networks with high availability, extensive diagnostic options and high transmission speeds. For high-performance system networks with connection to the company network. High network availability through redundant power supply and redundant network structures based on fiber optic or twisted pair with retaining collar (redundancy manager, standby function and RSTP integrated), through simple device replacement using the C-PLUG removable medium and very fast reconfiguration of the network in the event of a fault. Seamless integration of automation networks into existing company networks through support of numerous IT standards, e.g. setting up virtual networks (VLAN). Possibility of easy adaptation to different network structures. Optimal integration into process and system diagnostics with PROFINET and integration into existing network management systems through standardized SNMP access. Additional functions include integrated configuration and diagnostics in the STEP 7 engineering tool, an integrated web server and automatic email sending function for remote diagnostics and signaling over the network. Managed, Layer 2 compact switch, DC 24 V, 20x 10/100 Mbit/s RJ45 ports electrical, 1x 100 Mbit/s multimode SC, max. 5km, PN IO device The system is supplemented by SITOP PSU100C 24 V/0.6 for the regulated power supply, a C-PLUG removable medium, SC RJ POF and SC RJ PCF screw connectors, FC FO plugs and cases for self-assembly of FO cables (LC) for on-site installation, MM FO BFOC and SC connector set, FC M12 connector, M12 control cabinet feedthrough, RJ45 connector, terminal block for signaling contact, mounting bracket for fastening and various Fast Connect connector and cable variants (also pre-assembled) with stripping tool. Switch to the future - SCALANCE X. SCALANCE X320-1FE Managed, Layer 2 compact switch, 20x 10/100 Mbit/s RJ45, 1x 100 Mbit/s multimode SC for structuring larger plant networks. Installation in control cabinets for setting up switched networks with high availability, extensive diagnostic options and high transmission speeds. For high-performance plant networks with connection to the company network. High network availability through redundant power supply and redundant network structures based on fiber optic or twisted pair with retaining collar (redundancy manager, standby function and RSTP integrated), through simple device replacement using the C-PLUG removable medium and very fast reconfiguration of the network in the event of a fault. Seamless integration of automation networks into existing company networks through support of numerous IT standards, e.g. setting up virtual networks (VLAN). Possibility of easy adaptation to different network structures. Optimal integration into process and system diagnostics with PROFINET and integration into existing network management systems through standardized SNMP access. Additional functions include integrated configuration and diagnostics in the STEP 7 engineering tool, an integrated web server and automatic email sending function for remote diagnostics and signaling over the network. Managed, Layer 2 compact switch, DC 24 V, 20x 10/100 Mbit/s RJ45 ports electrical, 1x 100 Mbit/s multimode SC, max. 5km, PN IO device The system is supplemented by SITOP PSU100C 24 V/0.6 for the regulated power supply, a C-PLUG removable medium, SC RJ POF and SC RJ PCF screw connectors, FC FO plugs and cases for self-assembly of FO cables (LC) for on-site installation, MM FO BFOC and SC connector set, FC M12 connector, M12 control cabinet feedthrough, RJ45 connector, terminal block for signaling contact, mounting bracket for fastening and various Fast Connect connector and cable variants (also pre-assembled) with stripping tool. Switch to the future - SCALANCE X.
