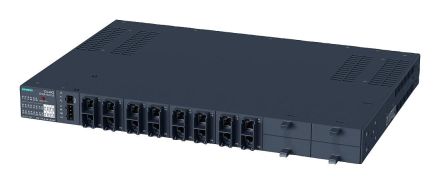

SCALANCE XR324-4M PoE, managed IE switch, 19 rack, 8x 10/100/1000 Mbit/s for RJ45 ports electrical with PoE, 8x 10/100/1000 Mbit/s for RJ45 ports electrical without PoE, 4x 10/100/1000 Mbit/s 2-port media modules, electrical or optical, LED diagnostics, error message contact, select/set button, PROFINET IO device, power supply DC 24V, ports at the front. SCALANCE XR324-4M PoE Managed, Layer 2 Rack Switch, 8x 10/100/1000 Mbit/s RJ45 PoE, 8x 10/100/1000 Mbit/s RJ45, 4x 10/100/1000 Mbit/s for media modules, DC 24 V, ports at the front for supplying PoE-capable devices. Installation in 19-inch racks for setting up switched networks and supplying PoE-capable devices with power via the data line. Unlimited flexibility for network expansions or conversions as well as reduction in storage costs thanks to modular design with port modules. Seamless integration of automation networks into existing company networks through the support of numerous IT standard functions (VLANs, IGMP snooping/querier, STP/RSTP, link aggregation, quality of service) as well as time savings in engineering, commissioning and in the operating phase of a system due to the integrated configuration and diagnostics in STEP 7. High network availability through redundant power supply, redundant network structures based on fiber optic or twisted pair with retaining collar (redundancy manager, standby function or STP/RSTP integrated), simple device replacement using the C-PLUG removable medium and very fast reconfiguration of the network in the event of a fault. 4x ports with Power-over-Ethernet (PoE) support. Flexible cable outlet on the front or back of the device enables space savings in the control cabinet. Also remote diagnostics via PROFINET diagnostics, web browser, CLI or SNMP.Managed, Layer 2 rack switch, DC 24 V, 8x 10/100/1000 Mbit/s for RJ45 ports electrical with PoE, 8x 10/100/1000 Mbit/s for RJ45 ports electrical without PoE, 4x 10/100/1000 Mbit/s 2-port media modules, electrical or optical, PN IO device, ports at the front.The system is supplemented by a C-PLUG removable medium, SC RJ POF and SC RJ PCF screw connectors, FC FO plugs and cases for self-assembly of FO cables (LC) for on-site assembly, MM FO BFOC and SC connector set, M12 and RJ45 connectors, M12 control cabinet feedthrough, terminal block for signal contact and power supply, SCALANCE TAP104 and various Fast Connect connector and cable variants (also pre-assembled) with stripping tool.Switch to the future - SCALANCE X.
Property | Value |
Ethernet: | yes |
Width: | 449 mm |
Height: | 43.6 mm |
Depth: | 305 mm |
Number of 100 Mbps SC ports: | 8 |
Number of 1000 Mbps SC ports (SX): | 8 |
Number of 1000 Mbps SC ports (LX): | 8 |
Number of module slots: | 4 |
Number of 10/100 Mbps M12 ports: | 8 |
Number of 10/100/1000 Mbps RJ45 ports: | 24 |
Layer 2: | yes |
Layer 3: | no |
Manageable: | yes |
Protection class (IP): | IP20 |
Number of 100 Mbps ST ports: | 8 |
Number of 100/1000 Mbps Mini GBIC ports: | 8 |
Number of PoE ports: | 8 |
