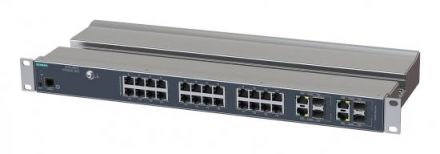

Siemens 6GK5328-4SS00-3AR3 SCALANCE XR328-4C Switch

SCALANCE XR328-4C WG, managed IE switch, 19 rack, 24 x 10/ IEC 62443-4-2 certified, 100/1000Mbit/s electrical ports, 4 x 1000Mbit/s combo ports electrical or optical, LED diagnostics, reset button, console port, PROFINET device, network management function, redundancy manager, power supply AC 240 V (85 - 264V). SCALANCE XR328-4C WG Managed, Layer 2 Rack Switch Workgroup, 24x 100/1000 Mbit/s RJ45, 4x 100/1000 Mbit/s Combo Ports, AC 230 V cost-optimized for large control roomsUse in 19-inch racks in industrial environments.Cost-optimized managed rack switch (work group) with the functions and approvals typical for industrial environments. Robust aluminum housing with low installation depth (127 mm) enables two devices to be installed on both sides of 19-inch cabinets (e.g. control rooms). Suitable for use in potentially explosive areas of Zone 2. Temperature range from 0 °C to +60 °C. Support for both industrial protocols (PROFINET and EtherNet/IP) in one device for use in real-time communication. High network availability through the construction of redundant ring structures based on HRP, PROFINET-compliant ring redundancy MRP and integrated redundancy manager. Support for load limitation when using multicast-based protocols and limitation of multicast and broadcast per port. Construction of virtual networks using VLAN function. Integrated web server and signaling contact for simple and fast diagnostics on the device and integration into existing network management systems through standardized SNMP access. 24x RJ45 ports and 4x combo ports (either RJ45 or LC-LWL).Managed, Layer 2 Rack Switch Workgroup, AC 230 V, 24x 100/1000 Mbit/s RJ45 ports electrical, 4x 100/1000 Mbit/s combo ports electrical or optical, PN IO device.Extensive accessories such as SITOP PS598-1 power supply, SFP plug-in transceiver, cold device cables and various Fast Connect cable variants (also pre-assembled) with stripping tool round off the system.Switch to the future - SCALANCE X.
