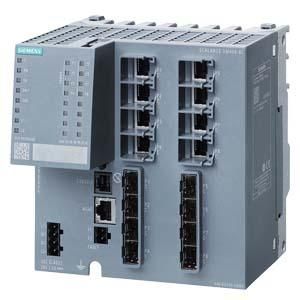

SCALANCE XM408-8C managed modular IE Switch 8x 10/100/1000 Mbit/s RJ45 8x 100/1000 Mbit/s SFP contains 8 combo ports a total of 8 ports can be used expandable to 24 ports electrically or optically Mounting: DIN/S7 profile rail, PROFINET IO device redundancy functions Office features (RSTP, VLAN, IGMP,..) C-PLUG included in delivery Layer 3 with key plug available SCALANCE XM408-4C Managed, Layer 2 Modular Switch, 8x 10/100/1000 Mbit/s RJ45, 8x 100/1000 Mbit/s SFP, with 8 combo ports for flexible and high-performance system networks Construction of switched networks. Particularly suitable for high-performance, flexible system networks at the control level. Communication in Layer 3 networks. Cost savings for automation networks: various connections (SC, ST/BFOC and LC), flexible use of the combo ports and easy expansion or adaptation of the structure to the system through the modular system. Seamless integration into existing company networks through support of numerous IT standards (e.g. setting up virtual networks: VLAN). Creation of IP subnets and IP router communication through Layer 3 switching (IP routing): static, dynamic (OSPF and RIPv2) and redundant routing (VRRP). High system availability through redundant power supply, redundant network structures, standby redundancy between ring structures, redundant switching through standard mechanisms STP, RSTP, MSTP, replacement and expansion of media modules during operation and easy device replacement through pluggable removable media KEY-PLUG/C-PLUG. Possibility of quick and mobile diagnostics with smartphone/tablet thanks to WLAN and NFC. Additional functions include simple monitoring and diagnostics through signaling contact, SNMP traps, PROFINET diagnostics and email sending as well as integrated configuration and diagnostics in the TIA Portal. Managed, Layer 2 Modular Switch, DC 24 V, 8x 10/100/1000 Mbit/s RJ45 ports electrical, 8x 100/1000 Mbit/s SFP, contains 8 combo ports, a total of 8 ports can be used, expandable to 24 ports electrical or optical, PROFINET IO device, Layer 3 with key plug available. The system is supplemented by SIMATIC PM 1507 for the regulated power supply, a C-PLUG and a KEY-PGLUG removable medium, FC FO plugs and cases for self-assembly of FO cables (LC) for on-site installation, MM FO BFOC and SC connector set, RJ45 connector, terminal block for signaling contact and power supply, mounting bracket for fastening and various Fast Connect connector and cable variants (also pre-assembled) with stripping tool. Switch to the future - SCALANCE X. SCALANCE XM408-4C Managed, Layer 2 Modular Switch, 8x 10/100/1000 Mbit/s RJ45, 8x 100/1000 Mbit/s SFP, with 8 combo ports for flexible and high-performance system networks. Setting up switched networks. Particularly suitable for high-performance, flexible system networks at the control level. Communication in Layer 3 networks. Cost savings for automation networks: various connections (SC, ST/BFOC and LC), flexible use of the combo ports and easy expansion or adaptation of the structure to the system thanks to the modular system. Seamless integration into existing company networks through support of numerous IT standards (e.g. setting up virtual networks: VLAN). Creation of IP subnets and IP router communication through Layer 3 switching (IP routing): static, dynamic (OSPF and RIPv2) and redundant routing (VRRP). High system availability through redundant power supply, redundant network structures, standby redundancy between ring structures, redundant switching through standard mechanisms STP, RSTP, MSTP, replacement and expansion of media modules during operation and simple device replacement through plug-in removable media KEY-PLUG/C-PLUG. Possibility of fast and mobile diagnostics with smartphone/tablet thanks to WLAN and NFC. Additional functions include simple monitoring and diagnostics through signaling contact, SNMP traps, PROFINET diagnostics and e-mail sending as well as integrated configuration and diagnostics in the TIA Portal. Managed, Layer 2 Modular Switch, DC 24 V, 8x 10/100/1000 Mbit/s RJ45 ports electrical, 8x 100/1000 Mbit/s SFP, contains 8 combo ports, a total of 8 ports can be used, expandable to 24 ports electrical or optical, PROFINET IO device, Layer 3 with key plug available. The system is supplemented by SIMATIC PM 1507 for the regulated power supply, a C-PLUG and a KEY-PGLUG removable medium, FC FO plugs and cases for self-assembly of FO cables (LC) for on-site installation, MM FO BFOC and SC connector set, RJ45 connector, terminal block for signaling contact and power supply, mounting bracket for fastening and various Fast Connect connector and cable variants (also pre-assembled) with stripping tool. Switch to the future - SCALANCE X.
| Property | Value |
| Ethernet: | yes |
| Width: | 140 mm |
| Height: | 147 mm |
| Depth: | 125 mm |
| Number of module slots: | 2 |
| Number of 10/100/1000 Mbps RJ45 ports: | 8 |
| Number of the combo ports RJ45/Mini GBIC: | 8 |
| Layer 2: | yes |
| Layer 3: | yes |
| Manageable: | yes |
| Protection class (IP): | IP20 |
| Max. PoE power: | 30 W |
| Number of 100/1000 Mbps Mini GBIC ports: | 8 |
| Number of PoE ports: | 16 |
