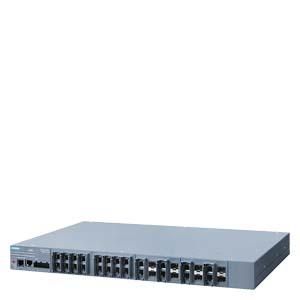

SCALANCE XR524-8C managed IE switch Layer 3 with key plug available Power supply AC 230 V 24x 10/100/1000 Mbit/s RJ45 8x 100/1000 Mbit/s SFP contains 8 combo ports in total 24 ports usable Error reporting contact Select/Set button PROFINET IO device Redundancy functions Office features (RSTP, VLAN, IGMP, ...) C-PLUG included SCALANCE XR524-8C Managed Layer 2 Rack Switch, 24x 10/100/1000 Mbit/s RJ45, 8x 100/1000 Mbit/s SFP, with 8 combo ports, AC 230 V for flexible and high-performance system networks For structuring high-performance system networks with connection to the office IT (layer 3) and for transmitting high data rates. Networking from the control level to the management level. Installation in a 19-inch control cabinet. Seamless integration of automation networks into existing company networks through support of numerous IT standard functions (VLANs, IGMP snooping/querier, STP/RSTP/MSTP, link aggregation, quality of service, 802.1X and optional static routing, RIP, OSPF, VRRP). Unlimited flexibility for network expansions or conversions and reduction of storage costs through fully modular design with SFPplus/SFP and media modules. Possibility of changing media modules and electrical or optical networking via combo ports, both during operation. High availability of the network through redundant power supply, redundant network structures based on fiber optic or twisted pair (redundancy manager, standby function and STP/RSTP/MSTP integrated), simple device replacement using plug-in removable media C-PLUG/KEY-PLUG and very fast reconfiguration of the network in the event of a fault. The redundant connection of rings using fast media redundancy is also possible. Other functions include PROFINET diagnostics, web browser, CLI and SNMP. Managed Layer 2 Rack Switch, AC 230 V, 24x 10/100/1000 Mbit/s RJ45 ports electrical, 8x 100/1000 Mbit/s SFP, contains 8 combo ports, a total of 24 ports usable, PROFINET IO device, Layer 3 available with key plug. The system is supplemented by a fan replacement slot, a KEY-PLUG removable medium for enabling Layer 3 features and terminal blocks for signaling contact or power supply. Switch to the future - SCALANCE X. SCALANCE XR524-8C Managed Layer 2 Rack Switch, 24x 10/100/1000 Mbit/s RJ45, 8x 100/1000 Mbit/s SFP, with 8 combo ports, AC 230 V for flexible and high-performance system networks For structuring high-performance system networks with connection to office IT (Layer 3) and for transmitting high data rates. Networking from the control level to the management level. Installation in a 19-inch control cabinet. Seamless integration of automation networks into existing company networks through support of numerous IT standard functions (VLANs, IGMP snooping/querier, STP/RSTP/MSTP, link aggregation, quality of service, 802.1X and optional static routing, RIP, OSPF, VRRP). Unlimited flexibility for network expansions or conversions and reduction of storage costs thanks to fully modular design with SFPplus/SFP and media modules. Possibility of changing media modules and electrical or optical networking via combo ports, both during operation. High availability of the network thanks to redundant power supply, redundant network structures based on fiber optic or twisted pair (redundancy manager, standby function and STP/RSTP/MSTP integrated), simple device replacement using plug-in removable media C-PLUG/KEY-PLUG and very fast reconfiguration of the network in the event of a fault. The redundant connection of rings using fast media redundancy is also possible. Other functions include PROFINET diagnostics, web browser, CLI and SNMP. Managed Layer 2 Rack Switch, AC 230 V, 24x 10/100/1000 Mbit/s RJ45 ports electrical, 8x 100/1000 Mbit/s SFP, contains 8 combo ports, a total of 24 ports usable, PROFINET IO device, Layer 3 available with key plug. The system is supplemented by a fan replacement slot, a KEY-PLUG removable medium for enabling Layer 3 features and terminal blocks for signaling contact or power supply. Switch to the future - SCALANCE X.
| Property | Value |
| Ethernet: | yes |
| Width: | 449 mm |
| Height: | 44 mm |
| Depth: | 305 mm |
| Number of 10/100/1000 Mbps RJ45 ports: | 24 |
| Number of combo ports RJ45/Mini GBIC: | 8 |
| Layer 2: | yes |
| Layer 3: | yes |
| Manageable: | yes |
| Protection class (IP): | IP20 |
| Number of 100/1000 Mbps Mini GBIC ports: | 8 |
