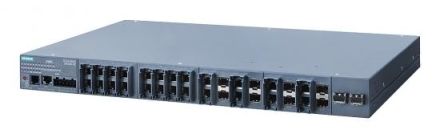

SCALANCE XR526-8C, managed IE switch, Layer 3 with key plug available, power supply DC 24V, 24x 10/100/1000 Mbit/s RJ45, 8x 100/1000 Mbit/s SFP combo, 2x 10 Gbit/s SFP+, a total of 26 ports can be used, error message contact, select/set button, PROFINET IO device, redundancy functions, office features (RSTP, VLAN, IGMP, ...), C-PLUG included. SCALANCE XR526-8C Managed, Layer 2 Rack Switch, 24x 10/100/1000 Mbit/s RJ45, 8x 100/1000 Mbit/s SFP Combo, 2x 10 Gbit/s SFP+, DC 24 V for backbone networkingFor structuring high-performance system networks with connection to office IT (Layer 3) and for transmitting high data rates. Networking from the control level to the management level. Installation in a 19-inch control cabinet.Seamless integration of automation networks into existing company networks through support of numerous IT standard functions (VLANs, IGMP snooping/querier, STP/RSTP/MSTP, link aggregation, quality of service, 802.1X and optional static routing, RIP, OSPF, VRRP). Unlimited flexibility for network expansions or conversions and reduction of storage costs thanks to fully modular design with SFPplus/SFP and media modules. Possibility of changing media modules and electrical or optical networking via combo ports, both during operation. High availability of the network thanks to redundant power supply, redundant network structures based on fiber optic or twisted pair (redundancy manager, standby function and STP/RSTP/MSTP integrated), simple device replacement using plug-in removable media C-PLUG/KEY-PLUG and very fast reconfiguration of the network in the event of a fault. The redundant connection of rings using fast media redundancy is also possible. Other functions include PROFINET diagnostics, web browser, CLI and SNMP. Support for 2x 10 Gigabit ports.Managed, Layer 2 modular switch, DC 24 V, redundant, 24x 10/100/1000 Mbit/s RJ45 ports electrical, 8x 100/1000 Mbit/s SFP combo, 2x 10 Gbit/s SFP+, a total of 26 ports usable, PROFINET IO device, Layer 3 with key plug available.The system is supplemented by a fan replacement slot, a KEY-PLUG removable medium for enabling Layer 3 features and terminal blocks for signaling contact or power supply.Switch to the future - SCALANCE X.
| Property | Value |
| Ethernet: | yes |
| Width: | 449.0 mm |
| Height: | 44.0 mm |
| Depth: | 305.0 mm |
| Number of 10/100/1000 Mbps RJ45 ports: | 24 |
| Number of combo ports RJ45/Mini GBIC: | 8 |
| Layer 2: | yes |
| Layer 3: | yes |
| Manageable: | yes |
| Protection class (IP): | IP20 |
| Number of 10 Gbps Mini GBIC ports: | 2 |
| Number of 100/1000 Mbps Mini GBIC ports: | 8 |
