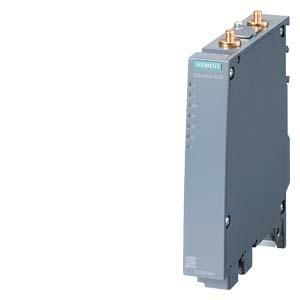

IWLAN Access Point, SCALANCE W774-1 RJ45, 1 radio, 2 R-SMA antenna connections, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5GHz, gross data rate 300 Mbit/s, 2x RJ45 max. 100 Mbit/s, PoE integrated 2-port switch, redundant DC 24 V, terminal block, IP30, -20... 60°C, plug slot WPA2/802.11i/e, note country approvals! CERT ID: MSN-W1-RJ-E2, scope of delivery: manuals on CD-ROM, German/English, 1x terminal block, for operation in Israel. SCALANCE W774-1 RJ45 (ISR) 1xRadio, 2xR-SMA antenna connection, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 300 Mbit/s, 2xRJ45 max. 100 Mbit/s, PoE integrated 2-port switch, redundant DC 24 V, terminal block, IP30, plug slot, for operation in Israel. Scalable access point with a built-in radio interface for setting up radio connections with iFeatures (iPCF/iPCF-MC) via removable medium (plug). 1 piece.The devices are suitable for installation in the control cabinet in industrial systems such as monorails and driverless transport systems and enable wireless commissioning on the system.Implementation of simple and cost-effective wireless machine networking. Flat, compact aluminum housing, shock and vibration resistant, suitable for high mechanical requirements. 2x2 MIMO technology for stable radio connections, secure wireless communication via PROFINET with PROFIsafe up to 300 Mbit/s. Wireless access for service and maintenance, cost-effective replacement of cable routes, light and small design for efficient use on driverless transport systems (FTS). Space-saving use thanks to SIMATIC design. Optional activation of additional functions (iFeatures) via removable medium (plug). The extensive accessories include a wide antenna portfolio, connectors, stripping tools, mounting accessories and cabling technology that round off the system.
| Property | Value |
| Max. Transfer rate: | 300 Mbit/s |
| Managed: | yes |
| Number of 10/100 Mbps LAN ports: | 2 |
| Bridge function: | yes |
| Repeater function: | yes |
| Height: | 0.147 mm |
| Width: | 0.026 mm |
| Depth: | 0.127 mm |
| Ethernet: | yes |
| Power over Ethernet: | yes |
| Ceiling mounting: | no |
| Installation: | no |
| Frequency band: | 2.4 GHz and 5 GHz |
| Mast mounting: | no |
| Protection class (IP): | other |
| Socket adapter: | no |
| Flush mounting: | no |
| Wall mounting: | yes |
| 482.6 mm (19 inch) mounting: | no |
| Number of users: | 28 |
