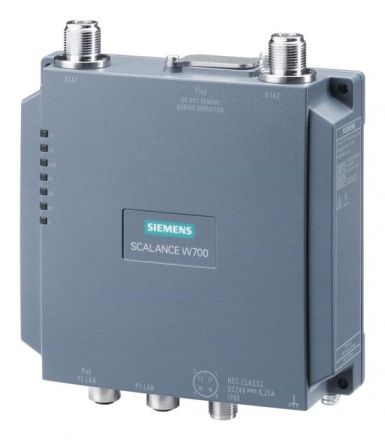

IWLAN Access Point, SCALANCE W778-1 M12, 1 radio, 2 N-CON antenna connections, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5GHz, gross data rate 300 Mbit/s, 2x M12 max. 100 Mbit/s, PoE integrated 2-port switch, redundant DC 24V, M12 A-coded IP65, -30... 65°C, plug slot WPA2/802.11i/e, note country approvals! CERT ID: MSN65-W1-M12-E2 FCC ID: LYHMSN65V1 Scope of delivery: Manuals on CD-ROM, German/English, M12 sealing caps, for operation in the USA. SCALANCE W778-1 M12 (USA) 1xRadio, 2xN-CON antenna connection, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 300 Mbit/s, 2xM12 max. 100 Mbit/s, PoE integrated 2-port switch, redundant DC 24V, IP65, temperature range -20°C - 60°C, plug slot, for operation in the USA. For the control cabinet-free construction of IWLAN radio networks in industrial plants. 1 piece. Access point suitable for simple, space-saving, control cabinet-free on-site installation in the industrial and automation sectors. Compact aluminum housing, shock and vibration resistant, for high mechanical requirements. Implementation of a simple and cost-effective wireless machine network in accordance with protection class IP65. Predictable data traffic (deterministics) and defined response times on the radio link as well as a reliable radio connection through the use of MIMO technology and monitoring of the radio link. Optional activation of additional functions (iFeatures) via a KEY plug. The extensive accessories include a wide antenna portfolio, connectors, stripping tools, mounting accessories and cabling technology that round off the system.
| Property | Value |
| Max. Transfer rate: | 300 Mbit/s |
| Managed: | yes |
| Number of 10/100 Mbps LAN ports: | 2 |
| Bridge function: | yes |
| Repeater function: | yes |
| Height: | 0.149 mm |
| Width: | 0.14 mm |
| Depth: | 0.045 mm |
| Ethernet: | yes |
| Power over Ethernet: | yes |
| Ceiling mounting: | no |
| Installation: | no |
| Frequency band: | 2.4 GHz and 5 GHz |
| Mast mounting: | no |
| Protection class (IP): | IP65 |
| Socket adapter: | no |
| Flush mounting: | no |
| Wall mounting: | yes |
| 482.6 mm (19 inch) mounting: | no |
| Number of users: | 28 |
