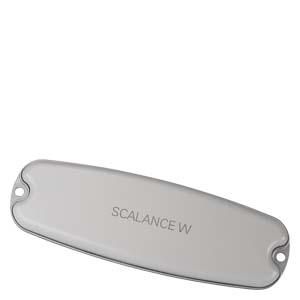

ANT795-6MT IWLAN antenna MIMO antenna with omnidirectional characteristics including 3x QMA sockets, 5/7 dBi, IP65 (-40-+85° C), 2.4/5GHz, Wi-Fi compliance and country approvals, installation on roof, vehicle and ceiling mounting, compact instructions on paper in German/English, scope of delivery: 1x ANT795-6MT, 1x installation aid for ceiling mounting. SCALANCE antenna ANT795-6MTUsed for Industrial Wireless LAN (IWLAN) and WLAN according to IEEE 802.11 at 2.4 GHz and 5 GHz with data rates of up to 450 Mbit/s to optimize the transmission and reception conditions. The antenna is connected to access points or clients via an IWLAN antenna connection cable. Examples of use: Illumination of an area with a mast in the middle for mounting the antennas, installation of the antenna on the roof of driverless transport systems for reliable data exchange with the vehicles, comprehensive illumination of a production cell or a robot station. By concentrating the radio field around the antenna, the quality of the connection is improved. Increased data throughput and greater reliability of the radio connection through targeted use of multipath propagation. Three data streams can be transmitted simultaneously. Good transmission properties even directly above/below the antenna. Flexible installation options: on a roof or under a ceiling (with supplied mounting bracket). Investment protection through conformity with the globally recognized IEEE 802.11 standard. Cost-effective connection to devices in remote, difficult to access or aggressive environments.
