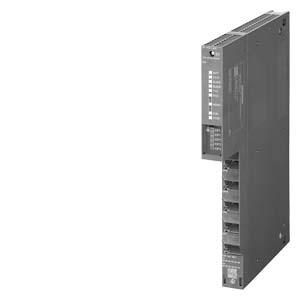

Siemens 6GK7443-1GX30-0XE0 processor

In stock

SKU: 331140

Price on request

€4,544.78

€0

Overview

Communications processor CP 443-1 Advanced 1x 10/100/1000 Mbit/s, 4x 10/100 Mbit/s (IE switch) RJ 45 ports, ISO, TCP, UDP, PROFINETIO controller, S7 communication, open communication (SEND/RECEIVE), S7 routing, IP configuration via DHCP/block, IP Access Control List, time synchronization, extended web diagnostics, fast startup, PROFIenergy support, IP routing, FTP, web server, e-mail, PROFINET CBA, Please note SIOS ID:109799025 .

Property	Value
IO-Link Master:	no
Height:	290 mm
Width:	25 mm
Depth:	210 mm
Number of PROFINET interfaces:	4
Supports protocol for other bus systems:	yes
Bluetooth wireless standard:	no
With electrical isolation:	no
Redundancy capability:	no
Supports protocol for PROFIBUS:	no
Supports protocol for SERCOS:	no
Supports protocol for Foundation Fieldbus:	no
Supports protocol for DeviceNet:	no
Supports protocol for SUCONET:	no
Supports protocol for EtherNet/IP:	no
Supports protocol for ASI:	no
Supports Protocol for CAN:	no
Supports protocol for SafetyBUS p:	no
Supports protocol for PROFINET CBA:	yes
Supports protocol for PROFINET IO:	yes
Supports protocol for INTERBUS:	no
Supports protocol for DeviceNet Safety:	no
Wireless standard WLAN 802.11:	no
Supports protocol for KNX:	no
Supports protocol for PROFIsafe:	yes
Performance Level according to EN ISO 13849-1:	without
Supports protocol for AS-Interface Safety at Work:	no
Supports protocol for MODBUS:	no
Supports protocol for Data-Highway:	no
Suitable for safety functions:	no
Supports protocol for LON:	no
Supports protocol for INTERBUS-Safety:	no
Number of HW interfaces Industrial Ethernet:	5
With optical interface:	no
Associated equipment (Ex ia):	no
Associated equipment (Ex ib):	no
SIL according to IEC 61508:	without
