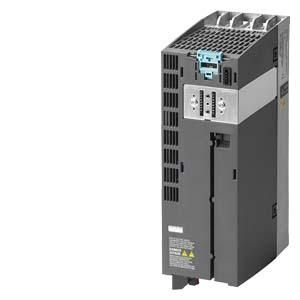

SINAMICS G120 Power Module PM230 unfiltered protection class IP20 3AC380-480V+10/-10% 47-63Hz power low overload: 5.5kW at 150% 3S, 110% 57S, 100% 240S ambient temperature 0 to +40°C (LO) 292x 100x 165 (HxWxD), FSB without control unit and operator panel approved for CU240B/E-2 and CU230P-2 from firmware version V4.4 Power Module SINAMICS Power Module PM230 (protection class IP20) the specialist for pumps, fans and compressors for the SINAMICS G120P frequency converter. The SINAMICS power unit, in combination with the appropriate control unit CU230P-2 and an IOP (Intelligent Operator Panel) or BOP-2 (Basic Operator Panel) operator panel, produces the functional SINAMICS G120P frequency converter. The PM230 (protection class IP20) is a built-in device for the control cabinet and generates only minimal network perturbations and apparent power losses. In addition to the energy benefits, the environment is also protected. The PM230 Power Module (protection class IP 20) supplies the motors in a power range from 0.37 kW up to 75 kW. The sizes FSA to FSF of the PM230 Power Module protection class IP 20 and push-through variants are available with an integrated Class A line filter for installations in accordance with Category C2 according to EN 61800-3 or without an integrated line filter. The following accessories are included in the delivery as standard: Shield plates and shield connection sets for the EMC-compliant connection of power and control cables, as well as connection plugs for the mains and motor output for sizes FSA to FSC. SINAMICS - the universal drive family for every application area
