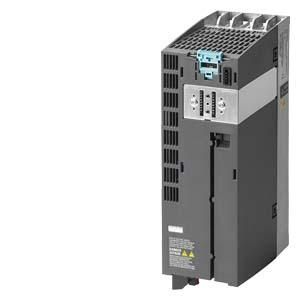

SINAMICS Power Module PM240-2 unfiltered with integrated brake chopper 3AC380-480V+10/-10% 47-63Hz High overload power: 1.5kW at 200% 3S, 150% 57S, 100% 240S Ambient temperature -10 to +50°C Low overload power: 2.2kW at 150% 3S, 110% 57S, 100% 240S Ambient temperature -10 to +40°C 196x 73x 165 (HxWxD), FSA Protection class IP20 without control unit and operating unit released from CU firmware version V4.6 Power Module SINAMICS Power Module PM240-2 the ideal power module for standard applications in mechanical engineering for the modular frequency converter SINAMICS G120. As part of the modular SINAMICS G120 frequency converter (consisting of power unit, control unit, operator panel), the PM240-2 Power Modules (protection class IP20) have a brake chopper (four-quadrant applications) and are suitable for a wide range of applications in general mechanical engineering. The PM240-2 power unit can be flexibly combined with various control units depending on the scope of the application and safety requirements (e.g. STO, SS1, SBC, SLS, SDI, SSM). In combination with the CU230-2, CU240x-2 and CU250S-2 control units, the functional SINAMICS G120 frequency converter is created. The PM240-2 with protection class IP20 is a built-in device for the control cabinet with a power range of 0.37 kW up to 132 kW, as well as three voltage variants 200 V, 400 V and 690 V. The power modules are available unfiltered or with an integrated Class A line filter and in six sizes from FSA to FSF. For optimal dissipation of waste heat outside the control cabinet, the power unit is also available as a push-through variant. The sizes FSD to FSF also offer Safe Torque Off (STO) in accordance with IEC 61508 SIL 3 and EN ISO 13489-1 PL e and Category 3. Due to the robust design, cable lengths of up to 450 meters (size FSF) can be achieved. Shield plates and shield connection sets are available for EMC-compliant wiring. SINAMICS - the consistent drive family for every application area
