Siemens 6XV1801-5AH10 connecting cable Robust Power M12-180/M12-180

In stock

SKU: 337442

Price on request

€66.25

€0

Overview

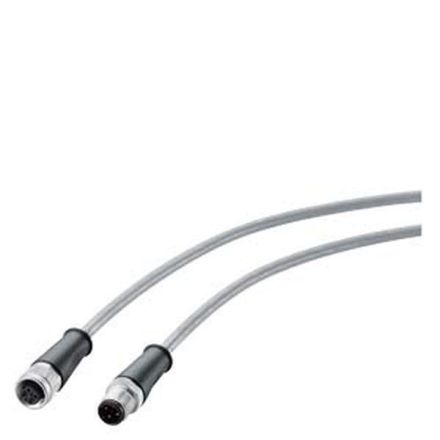

Robust Power Connecting Cable M12-180/M12-180, IP69, for power supply of the ET 200, pre-assembled cable with M12 plug and M12 socket, A-coded, 4-pin, 1.0 m. SIMATIC NETRobust Power Connecting Cable M12-180/M12-180, IP69, 1 m

Property	Value
Length:	1 m
Connection 1:	other
Rated current:	4.5 A
Rated voltage:	300 V
Protection class (IP):	other
Sheath material:	other
Number of cores:	4
Nominal conductor cross-section:	0.75 mm²
Spiral cable:	no
With cord switch:	no
Temperature resistance:	-40 to 80 °C
Outer diameter approx.:	5.7 mm
Connector system system-bound:	no
Fire behavior class according to EN 13501-6:	without
