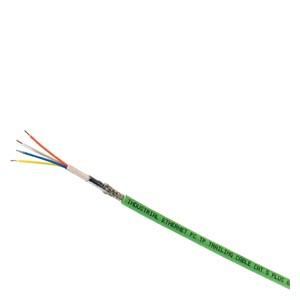

Siemens 6XV1841-2B Industrial Ethernet cable GP2x2 (PROFINET Type B)

In stock
SKU: 368931
€5.06
Into a basketIn the basketGo

Overview

Industrial Ethernet FastConnect TP robust flexible cable GP 2x2 (PROFINET type B), TPE outer jacket, with flexible wires, for connection to FC RJ45 plug and FC outlet RJ45, 4-wire, shielded, CAT 5, sold by the meter, delivery unit max. 1000m, minimum order quantity 20m. SIMATIC NETIE FC TP Robust Flexible Cable GP 2x2 (Type B)Robust, flexible cable for use in occasionally moving machine parts.Time saving through simple and quick on-site assembly. Interference-resistant network thanks to double-shielded cables and consistent grounding concept. Silicone-free, making it suitable for use in the automotive industry (e.g. paint shops). Exceeds category 5 (Cat5e) of the international cabling standard ISO/IEC 11801 and EN 50173. Easy length determination thanks to printed meter marking.

Property Value
Number of cores: 4
Outer diameter approx.: 6.5 mm
Category: 5E
Low smoke according to EN 61034-2: no
Conductor diameter: 0.75 mm
Number of Stranding elements: 2
Sheath material: others
Permissible Cable external temperature during assembly/handling: -40 to 60 °C
Perm. External cable temperature after installation without vibration: -40 to 75 °C
NVP value: 66 %
Specification of sheath material: other
Fire behavior class according to EN 13501-6: Eca
Min. permissible bending radius, flexible use with forced guidance: 52 mm
Min. permissible bending radius, flexible use/free movement: 52 mm
Min. permissible bending radius, stationary use/fixed installation: 52 mm

Characteristics

Sheath materialOther
Outer diameter approx.6.5 mm
Category5E
Conductor diameter0.75 mm
HABGP2x2 (PROFINET Type B)
ManufacturerSIEMENS
HAN6XV1841-2B
GTIN4019169855099
Wire number4
Siemens 6XV1841-2B Industrial Ethernet cable GP2x2 (PROFINET Type B)
