Siemens 6XV1870-3RN10 Ethernet TP XP Cord RJ45/RJ45 CAT 6

In stock

SKU: 385875

Price on request

€49.36

€0

Overview

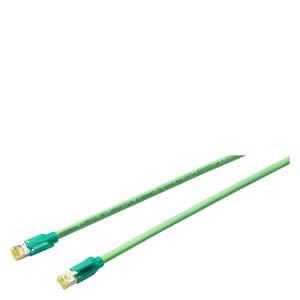

Industrial Ethernet TP XP Cord RJ45/RJ45, CAT 6A, crossed TP cable 4x2, pre-assembled with 2 RJ45 connectors, length 10m. SIMATIC NETIE TP XP Cord RJ45/RJ45, 4x2Simple connection of end devices with RJ45 connection to the interference-proof Industrial Ethernet FastConnect cabling system (10/100/1000 Mbit/s). Silicone-free, therefore suitable for use in the automotive industry (e.g. paint lines).Fast and error-free commissioning thanks to pre-assembled, factory-tested patch cables. Easy installation thanks to small cable diameter. Color-coded RJ45 plugs to distinguish between crossed and non-crossed cables (crossed: RJ45 plug red on both sides, non-crossed: RJ45 plug green on both sides).

Property	Value
Number of cores:	8
Outer diameter approx.:	6.2 mm
Stranding element:	Pairs
Category:	other
Low smoke according to EN 61034-2:	no
Conductor diameter:	0.5 mm
Number of stranding elements:	4
Sheath material:	other
Permissible external cable temperature during assembly/handling:	-25 to 80 °C
Permissible External cable temperature after installation without vibration:	-25 to 80 °C
NVP value:	80 %
Specification of sheath material:	other
Fire behavior class according to EN 13501-6:	Eca
Min. permissible bending radius, flexible use with forced guidance:	43.5 mm
Min. permissible bending radius, flexible use/free movement:	43.5 mm
Min. permissible bending radius, stationary use/permanently installed:	43.5 mm
Laying in the ground:	no
UV-resistant:	no
