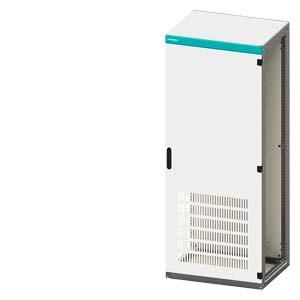

SIVACON, switchgear cabinet - empty housing, without side panels, according to IEC 62208, with ventilation openings, IP20, H: 2000 mm, W: 400 mm, D: 800 mm The SIVACON 8MF1 system cabinet - as diverse as your requirements. The modular SIVACON 8MF1 system kit enables customized solutions for almost all industrial sectors and applications. Completely pre-assembled, adapted to requirements or developed completely individually, the system cabinets support individual added value in switchgear construction. The basis of the SIVACON 8MF1 system kit is the framework, available in 90 sizes and combinable with more than 2,000 individual elements. Complete cabinets are available in three versions for standard applications: closed, ventilated and with a viewing window. The SIVACON 8MF1 system cabinets are tested in accordance with IEC 61439 for corrosion resistance, heat resistance, resistance to exceptional heat and fire, lifting, impact testing, protection class of enclosures, continuity of the protective conductor connection, proof of the power loss dissipation capacity. The SIMARIS therm software can be used to calculate the correct dimensioning of the heat dissipation of control cabinets - simply by entering the respective ambient temperature and selecting the corresponding devices in the system cabinet. The Siemens SIVACON 8MF1 system cabinets are characterized by the following: 1. The SIVACON 8MF1 system cabinets are screwed and are characterized by high stability. 2. Electrolytically galvanized and powder-coated enclosures ensure greater resistance to environmental influences, such as moisture. 3. Earthquake-proof versions and electromagnetically compatible empty control cabinet enclosures are also available. 4. If required, the SIVACON 8MF system cabinets can be supplied in many special and functional colors, and also in multiple colors if required - with a slight increase in delivery time. www.siemens.de/sivacon-8MF. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe, efficient electrical infrastructure in buildings and industry.
| Property | Value |
| Suitable for outdoor installation: | no |
| With rear door: | no |
| Height: | 2000 mm |
| Width: | 400 mm |
| Depth: | 800 mm |
| RAL number: | 7035 |
| With mounting plate: | yes |
| Number of doors: | 1 |
| EMC version: | no |
| With viewing door: | no |
| Depth-adjustable mounting plate: | yes |
| Suitable for metric mounting: | no |
| With ventilation door: | yes |
| Mast mounting: | no |
| Sloped roof: | no |
| Wall installation: | no |
| Material quality: | other |
| Protection class (NEMA): | other |
