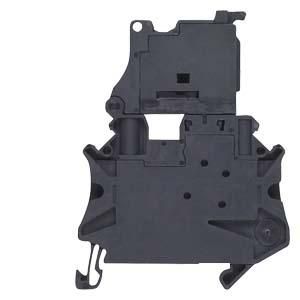

Siemens 8WH1000-1MG88 fuse terminal LED 110-250V

In stock
SKU: 332537
€16.73
Into a basketIn the basketGo

Overview

Fuse terminal LED 110-250V with screw connection Terminal size 4.0mm2 Terminal width 6.2mm Color black Fuse 5x 20mm Terminal block connection technology for various industrial applications and modern building installations from Siemens. Regardless of whether you choose screw, tension spring, push-in or quick connection: All connection technologies can be freely combined with one another. The labeling and test accessories are standardized and can be used across the board. With the terminal blocks from SIEMENS, many applications in industry, commercial and residential construction can be realized. This means you have the right connection technology for every connection. The Siemens terminal blocks are characterized above all by: 1. Permanently secure contact. 2. Easily detachable connection of electrical connections such as cables and lines. 3. Realization of a wide range of applications. 4. Convenient and simple assembly and connection technology. 5. Extensive and standardized accessories. 6. Reliable safety during installation thanks to standard contact protection. 7. Optimum technology for your safety - only from Siemens. www.siemens.de/lowvoltage. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe, efficient electrical infrastructure in buildings and industry.

Property Value
Connectable conductor cross-section, single-wire: 0.14 mm²
Connectable conductor cross-section, stranded: 0.14 mm²
Connectable conductor cross-section, stranded without wire end ferrule: 0.14 to 6 mm²
Connectable conductor cross-section, stranded with wire end ferrule: 4 mm²
Operating temperature: 105 °C
Rated current In: 6 A
Rated voltage: 630 V
Number of levels: 1
End plate required: no
Flammability class of the insulating material according to UL 94: V0
Material of the insulating body: other

Characteristics

HAB8WH1000-1MG88 LED110-250V
ManufacturerSIEMENS
HAN8WH1000-1MG88
GTIN4001869403069
Connectable conductor cross-section solid0.14 mm²
Connectable conductor cross-section stranded0.14 mm²
Rated voltage630V
Rated current In6A
Operating temperatur105°C
Flammability class of the insulating material according to UL 94V0
