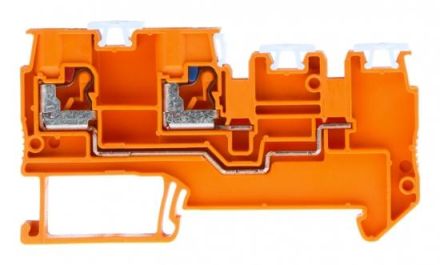

Siemens 8WH6003-0DF04 1.5qmm 3-wire orange feed terminal

In stock
SKU: 774604
€4.55
Into a basketIn the basketGo

Overview

Feed terminal 1.5 mm2 for 3-wire Orange terminal block connection technology for various industrial applications and modern building installations from Siemens. Regardless of whether you choose screw, tension spring, push-in or quick connection: All connection technologies can be freely combined with one another. The labeling and test accessories are standardized and can be used across the board. With the terminal blocks from SIEMENS, many applications in industry, commercial and residential construction can be realized. This means you have the right connection technology for every connection. The Siemens terminal blocks are characterized above all by: 1. Permanently secure contact. 2. Easily detachable connection of electrical connections such as cables and lines. 3. Realization of a wide range of applications. 4. Convenient and simple assembly and connection technology. 5. Extensive and standardized accessories. 6. Reliable safety during installation thanks to standard touch protection. 7. Optimum technology for your safety - only from Siemens. www.siemens.com/lowvoltage. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe, efficient electrical infrastructure in buildings and industry.

Property Value
Connectable conductor cross-section, fine-stranded with wire end ferrule: 0.199999999 to 2.5 mm²
Connectable conductor cross-section, single-stranded: 0.199999999 to 4 mm²
Color of the lamp: orange
Connectable conductor cross-section, fine-stranded without wire end ferrule: 0.199999999 to 2.5 mm²
Rated current In: 20 A
Connectable conductor cross-section, stranded: 0.199999999 to 2.5 mm²
Rated voltage: 250 V
Number of levels: 2
Flammability class of the insulating material according to UL 94: V2
End plate required: no
LED switching for: no
With PE connection: no
With shield connection: no
With feed-in function: yes
Number of terminal points per floor: 1
Floors internally bridged: no
Can be cross-connected: yes
Isolation function: no
Explosion-tested version 'Ex e': no
Material of the insulating body: Thermoplastic

Characteristics

Color of the lampOrange
HAB1.5qmm 3-wire orange
ManufacturerSIEMENS
HAN8WH6003-0DF04
GTIN4001869552767
Connectable conductor cross-section solid0.199999999 to 4 mm²
Connectable conductor cross-section stranded0.199999999 to 2.5 mm²
Rated voltage250V
Rated current In20A
Flammability class of the insulating material according to UL 94V2
Siemens 8WH6003-0DF04 1.5qmm 3-wire orange feed terminal
Siemens 8WH6003-0DF04 1.5qmm 3-wire orange feed terminal
