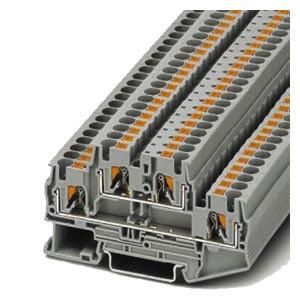

Siemens 8WH6020-0AG00 double-deck terminal

In stock
SKU: 359960
€2.85
Into a basketIn the basketGo

Overview

Double-deck terminal 4 mm2, 6.2 mm wide, gray. Terminal block connection technology for various industrial applications and modern building installations from Siemens. Regardless of whether you choose screw, tension spring, push-in or quick connection: All connection technologies can be freely combined with one another. The labeling and test accessories are standardized and can be used across the board. With the terminal blocks from SIEMENS, many applications in industrial, commercial and residential construction can be realized. This means you have the right connection technology for every connection. The Siemens terminal blocks are characterized above all by: 1. Permanently secure contact. 2. Easily detachable connection of electrical connections such as cables and lines. 3. Realization of a wide range of applications. 4. Convenient and simple assembly and connection technology. 5. Extensive and standardized accessories. 6. Reliable safety during installation thanks to standard touch protection. 7. Optimum technology for your safety - only from Siemens. www.siemens.de/lowvoltage. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe, efficient electrical infrastructure in buildings and industry.

Property Value
Connectable conductor cross-section, finely stranded without wire end ferrule: 0.199999999 to 6 mm²
Rated voltage: 500 V
Number of floors: 2
Number of terminal points per floor: 2
Rated current In: 28 A
Operating temperature: -105 to -60 °C
Connectable conductor cross-section, single-wire: 0.199999999 to 6 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule: 0.25 to 4 mm²
Design of electrical connection 2: other
Flammability class of the insulating material according to UL 94: V0
End plate required: yes
Internally bridged levels: no
Material of the insulating body: other
Explosion-tested version 'Ex e': yes

Characteristics

HAB8WH6020-0AG00
ManufacturerSIEMENS
HAN8WH6020-0AG00
GTIN4001869447742
Connectable conductor cross-section solid0.199999999 to 6 mm²
Rated voltage500V
Rated current In28 A
Operating temperatur-105 to -60 °C
Flammability class of the insulating material according to UL 94V0
