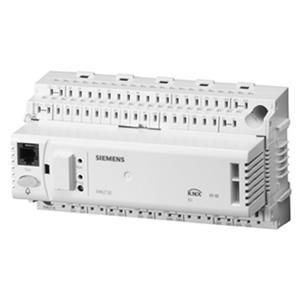

Universal controller with integrated control and monitoring functions , - Suitable for controlled variables temperature, relative / absolute humidity, pressure / pressure difference, air volume flow, air quality etc. , - Independent sequence controller with P, PI or PID behavior , - Tested predefined applications (see application catalog) , - Flexible configuration options , - Plain text operation using a separate operating device, which can be attached or removed as desired , - Integrated KNX bus communication , - No commissioning tool required , The RMU7..0B-1 supports the following languages: English, German, French, Italian, Spanish, Portuguese, Dutch, Danish, Finnish, Norwegian, Swedish, Polish, Czech, Hungarian, Russian, Slovak, Bulgarian, Greek, Romanian, Slovenian, Serbian, Croatian, Turkish, Chinese. , Expansion modules complement the universal controller and offer a functional extension. They are connected to the controller via a plug connection. The extension modules cannot work autonomously. Operation, ie commissioning and end user operation, is carried out via the controller's control unit. , Usable extension modules: , - 1 universal module RMZ785 , - 2 universal modules RMZ787 , - 2 universal modules RMZ788 , A maximum of 4 extension modules can be used simultaneously on a universal controller. , Usable control devices: , - Attachable control device RMZ790 , - Removable control device RMZ791 , - Bus control device RMZ792
| Property | Value |
| Number of controller channels: | 10 |
| Number of analog inputs: | 8 |
| Number of analog outputs: | 4 |
| Number of digital outputs: | 6 |
| LED display inputs: | no |
| LED display Outputs: | no |
| Voltage type: | AC |
| Supply voltage: | 24 V |
| With display: | no |
| With PC connection: | yes |
| Communication bus: | other |
| Communication protocol: | KNX |
| Communication medium copper: | yes |
| Communication medium fiber optic: | no |
| Protection class (IP): | IP20 |
| Explosion-proof: | no |
| Clock type: | Year |
| Expandable: | yes |
| Self-contained: | yes |
| DIN rail mounting: | yes |
| Front mounting: | no |
| Protection against local operation: | yes |
| Standard applications available: | yes |
| Width: | 173 mm |
| Height: | 90 mm |
| Depth: | 80 mm |
