Siemens BVP:261491 Busbar trunking system BVP: 261491 BD2A-3-400-SO-2 400A

In stock
SKU: 349066
€620.66
Into a basketIn the basketGo

Overview

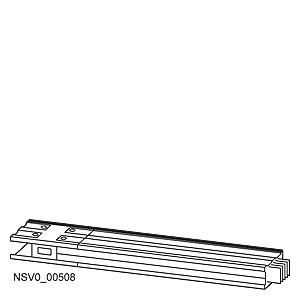

BD2A-3-400-SO-2 STANDARD LENGTH 2.25M 400A, N + PE, WITHOUT TAP-OFF POINTS

Property Value
Rated voltage at AC 50 Hz: 690 V
RAL number: 7035
Number of poles: 5
Rated current at AC 50 Hz: 400 A
Number of conductors (without earth): 4
Flexible: no
Protection class (IP): IP52
Width: 167 mm
Height: 68 mm
Length: 225 mm

Characteristics

Number of conductors (excluding earth)4
HABBVP: 261491 BD2A-3-400-SO-2 400A
ManufacturerSIEMENS
HANBVP:261491
GTIN4019169785891
Width167 mm
FlexibleNo
Height68 mm
Length225 mm
Number of poles5
RAL number7035
IP protection)IP52
