Spelsberg 22701601 KVR M16-MGM/sw cable gland

In stock

SKU: 1061125

Price on request

€1.60

€0

Overview

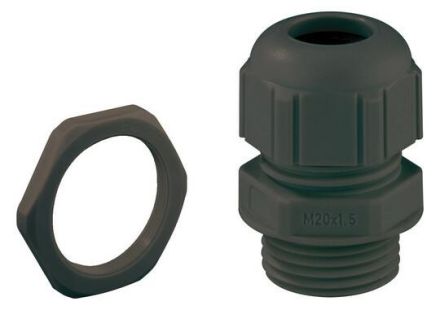

Cable gland, IP68, with strain relief, polyamide, M_ x 1.5mm, with lock nut, black, sealing range 4-10mm, thread length 8mmDimensions: 22 x 22 x 31mm

Property	Value
Protection class (IP):	IP68
Weight:	0.56
Weight unit:	KG
Color:	black
Design:	straight
Halogen-free:	yes
Impact-resistant:	yes
RAL number:	9005
Surface:	untreated
Wrench size:	20 mm
Thread length:	8 mm
With strain relief:	yes
Glass fiber reinforced:	yes
Type of seal:	Sealing ring
Material quality:	Polyamide (PA)
Operating temperature:	-25 - 100 °C
Thread type:	metric
Material:	plastic
Thread pitch:	1.5 mm
With lock nut:	yes
Hexagon corner dimension:	22 mm
Suitable for cable diameters:	10 - 4 mm
For Ex-Zone Gas:	without
Nominal thread size in inches NPT/gas pipe thread:	other
Nominal thread size metric/PG:	16
For Ex zone dust:	without
Short description:	Cable gland, M16, jet black, protection class IP68
