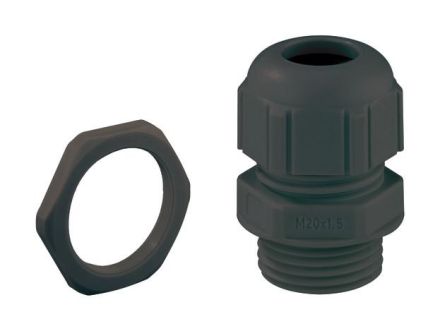

Spelsberg 22902501 KVR M25 LG-MGM/sw cable gland

In stock

SKU: 710461

Price on request

€2.59

€0

Overview

Cable gland, IP68, with strain relief, long thread, M_ x 1.5mm, with lock nut, polyamide, black, sealing range 9-16mm, thread length 15mmDimensions: 31.2 x 31.2 x 48mm

Property	Value
Wrench size:	28 mm
Thread pitch:	1.5 mm
Nominal thread size metric/PG:	25
Suitable for cable diameters:	9 to 16 mm
Protection class (IP):	IP68
Operating temperature:	-25 to 100 °C
Halogen-free:	yes
Thread length:	15 mm
Thread type:	metric
Design:	straight
Color:	black
Material:	plastic
With Strain relief:	yes
Surface:	untreated
Hexagon corner dimension:	31.5 mm
Type of seal:	Sealing ring
Impact resistant:	yes
Bending protection:	no
RAL number:	9005
Material quality:	Polyamide (PA)
Nominal thread size in inches NPT/gas pipe thread:	other
Fiberglass reinforced:	no
With lock nut:	yes
Multiple sealing insert:	no
Flat cable screw connection:	no
Dividable screw connection:	no
Explosion-tested version:	no
For Ex zone gas:	without
For Ex zone dust:	without
Snaps into opening:	no
For armored cables:	no
EMC version:	no
Shielded:	no
