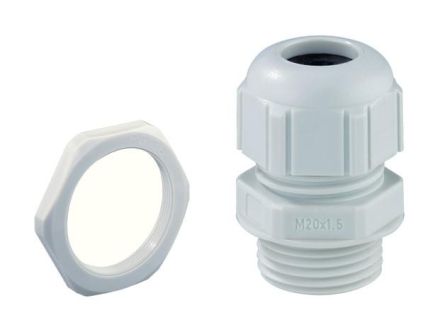

Spelsberg 22943201 KVR M32 LG-MGM cable gland

In stock

SKU: 710455

Price on request

€2.98

€0

Overview

Cable gland, IP68, with strain relief, long connection thread, M_ x 1.5mm, with lock nut, polyamide, grey, sealing range 11-21mm, thread length 15mmDimensions: 40 x 40 x 54mm

Property	Value
Wrench size:	36 mm
Thread pitch:	1.5 mm
Nominal thread size metric/PG:	32
Suitable for cable diameters:	11 to 21 mm
Protection class (IP):	IP68
Operating temperature:	-25 to 100 °C
Halogen-free:	yes
Thread length:	15 mm
Thread type:	metric
Design:	straight
Material:	plastic
With strain relief:	yes
Surface:	untreated
Hexagon corner dimension:	40 mm
Type of seal:	Sealing ring
Impact resistant:	yes
Bending protection:	no
RAL number:	7035
Material quality:	Polyamide (PA)
Nominal thread size in inches NPT/gas pipe thread:	other
Fiberglass reinforced:	no
With lock nut:	yes
Multiple sealing inserts:	no
Flat cable screw connection:	no
Dividable screw connection:	no
Explosion-tested version:	no
For Ex zone gas:	without
For Ex zone dust:	without
Snaps into opening:	no
For armored cables:	no
EMC version:	no
Shielded:	no
