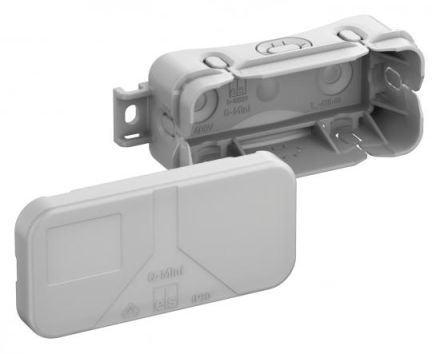

Spelsberg 33490801 Q-Mini-L junction box

In stock
SKU: 708232
€1.09
Into a basketIn the basketGo

Overview

Junction box, with protection class IP20, nominal cross-section 2.5mm², Ui=400V AC, certified according to (DIN EN 60670-1/-22 (VDE 0606-1/-22)), entries with cable retention capacity, (8 at the rear, 2 at the side), internal fastening points, for standard indoor installations, with cable retention, cable entry from above possible, grey, without terminalsDimensions: 89 x 43 x 34mm

Property Value
Width: 89 mm
Length: 43 mm
Depth: 34 mm
Color: gray
Protection class (IP): IP20
Number of entries: 10
Halogen-free: yes
Equipment: without
Mounting type: Wall/ceiling mounting
Material: Plastic
Cover fastening: snap-on
Sealable: no
Can be arranged in rows: no
Shape: rectangular
Max. Conductor cross-section: 2.5 mm²
Type of housing feedthrough: Pre-punched
For Ex-Zone Gas: without
Functional integrity: without
Explosion-tested version: no
Potting compound supplied: no
Potable: no
For Ex-Zone Dust: without
Installation under water: no
Transparent cover: no
Installation in the ground: no
Surface: untreated
With shielding: no
Rated insulation voltage Ui: 400 V
Introduction from the rear: yes
Weatherproof: yes
Cover design: Mounting cover
Operating temperature: -25 to 40 °C

Characteristics

Explosion-tested versionNo
HABQ-Mini-L
ManufacturerSpelsberg
HAN33490801
GTIN4013902642311
Cover designMounting cover
Rated insulation voltage Ui400V
Width89 mm
Operating temperature-25 to 40 °C
ColorGray
ShapeRectangular
Functional preservationWithout
Halogen freeYes
Length43 mm
Mounting typeWall/ceiling mounting
SurfaceUntreated
IP protection)IP20
Depth34 mm
MaterialPlastic
