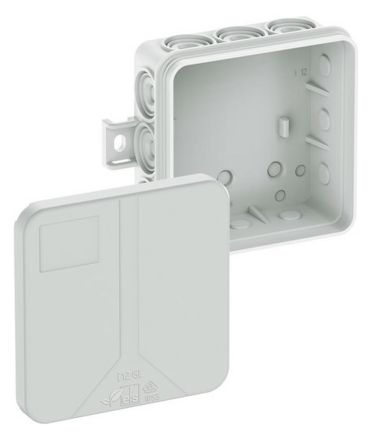

Spelsberg 33591201 i 12-L GL junction box

In stock
SKU: 1061746
€1.23
Into a basketIn the basketGo

Overview

Junction box, with protection class IP55, nominal cross-section 2.5mm², Ui=400 V AC, certified by (DIN EN 60670-1/-22 (VDE 0606-1/-22)), self-sealing entry membranes, sealing range 8.2-12.5mm, (3 at the rear, 12 at the side), external fastening points, sustainable, made of recycled plastics, for standard indoor installations, gray, In=24 A, without terminalsDimensions: 85 x 85 x 37mm GreenLine - The environmentally friendly junction box in proven quality! The i 12 GL consists of at least 90% PCR. By using recycled plastics, a reduction in the ecological footprint of at least 40% can be achieved compared to the conventional i 12.

Weight tsunit:
Property Value
Protection class (IP): IP55
Length: 85 mm
Width: 85 mm
Weight: 0.45
KG
Mounting type: Wall/ceiling mounting
Color: gray
Version: Connection box
Halogen-free: yes
Depth: 37 mm
Shape: square
Surface: untreated
Equipment: without
Rated insulation voltage Ui: 400 V
Functional integrity: without
Operating temperature: -25 - 40 °C
Material: Plastic
Number of entries: 12
Cover fastening: snap-on
Max. Conductor cross-section: 2.5 mm²
Weatherproof: yes
Insertion from the rear: yes
For Ex-Zone Gas: without
Type of housing feedthrough: Pre-knocked
For Ex zone dust: without
Cover design: mounting cover
Potable: yes
Protection class (NEMA): other
Short description: Junction box, protection class IP55, max. conductor cross-section 2.5², impact resistance IK07, protection class II, Ui 400V AC, halogen-free

Characteristics

HAB12-L GL
ManufacturerSpelsberg
HAN33591201
GTIN4013902689651
VersionJunction box
Cover designMounting cover
Rated insulation voltage Ui400V
Width85 mm
Operating temperature-25 - 40 °C
ColorGray
ShapeSquare
Functional preservationWithout
Weight0,45
Weight unit kg
Halogen freeYes
Short descriptionJunction box, protection class IP55, max. conductor cross-section 2.5², impact resistance IK07, protection class II, Ui 400V AC, halogen-free
Length85 mm
Mounting typeWall/ceiling mounting
SurfaceUntreated
IP protection)IP55
Protection class (NEMA)Other
Depth37 mm
MaterialPlastic
