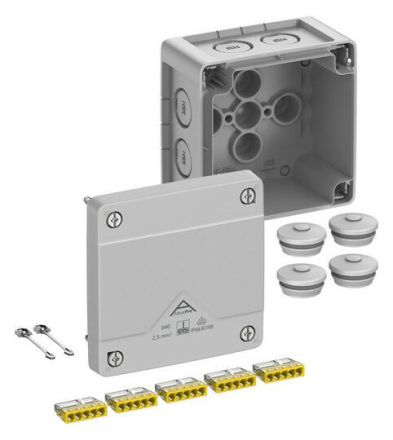

Spelsberg 40243001 Abox Pro 040-2.5 IP66/IP67/IP69 junction box

Spelsberg 40243001 Abox Pro 040-2.5 IP66/IP67/IP69 junction box

In stock

SKU: 1061018

Price on request

€11.79

€0

Overview

Junction box, with protection class IP66/IP67/IP69, nominal cross-section 4mm², certified by (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (ammonia resistance), DNV (class: ships & offshore facilities), deflection membranes, M16/M20/M25, (1 rear, 7 side), internal fastening points, for installations in industrial environments and unprotected outdoor areas, grey, Ui=450 V AC, In=24 A, with 5 screwless 5-conductor terminals Wago 2273-205, max. nominal cross-section according to DIN EN 60998: 2.5mm², clampable cross-sections per pole: 5 x 0.5-2.5mm² rigid Cu and Al (observe assembly instructions!)Dimensions:102 x 102 x 70mmIncluded accessories:4 double membrane nozzles IP66 M25 sealing range 9-17mm, cover loss protection

Weight unit:

Property	Value
Protection class (IP):	IP66/IP67/IP69
Length:	102 mm
Width:	102 mm
Weight:	226.5
KG
Mounting type:	Wall/ceiling mounting
Color:	gray
Version:	Connection box
Halogen-free:	yes
Depth:	70 mm
Shape:	square
Surface:	untreated
Equipment:	Plug-in terminal
Rated insulation voltage Ui:	450 V
Sealable:	yes
Functional integrity:	without
Operating temperature:	-35 - 80 °C
Material:	Plastic
Number of entries:	8
Cover fastening:	screwed
Max. Conductor cross-section:	2.5 mm²
Weatherproof:	yes
Introduction from the rear:	yes
For Ex-Zone Gas:	without
Type of housing feedthrough:	Pre-knocked
For Ex zone dust:	without
Cover design:	without
Protection class (NEMA):	other
Brief description:	Junction box, protection class IP66/IP67/IP69, max. 4², impact resistance IK09, Protection class II, Ui 450V AC, Ui 450V DC, DLG, DNV, halogen-free

Characteristics

HABAbox Pro 040-2.5? IP66/IP67/IP69

Manufacturer

HAN40243001

GTIN4013902662401

VersionJunction box

Cover designWithout

Rated insulation voltage Ui450V

Width102 mm

Operating temperature-35 - 80 °C

Color

ShapeSquare

Functional preservationWithout

Weight226,5

Weight unit kg

Halogen freeYes

Short descriptionJunction box, protection class IP66/IP67/IP69, max. 4², impact resistance IK09, protection class II, Ui 450V AC, Ui 450V DC, DLG, DNV, halogen-free

Length102 mm

Mounting typeWall/ceiling mounting

SurfaceUntreated

IP protection)IP66/IP67/IP69

Protection class (NEMA)Other

Depth70 mm

MaterialPlastic
