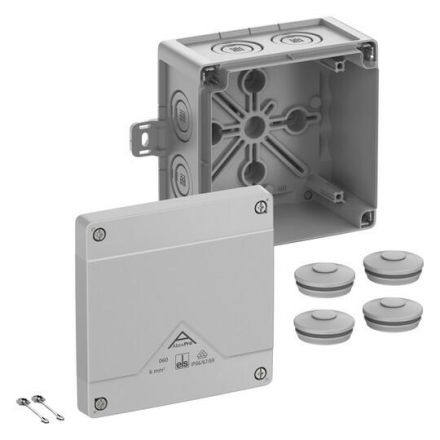

Spelsberg 40640101 Abox Pro 060 AB-L IP66/IP67/IP69 junction box

Spelsberg 40640101 Abox Pro 060 AB-L IP66/IP67/IP69 junction box

In stock

SKU: 1061019

Price on request

€14.15

€0

Overview

Junction box, with protection class IP66/IP67/IP69, nominal cross-section 6mm², certified by (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (ammonia resistance), DNV (class: ships & offshore facilities), deflection membranes, M20/M32, (1 rear, 7 side), external fastening points, for installations in industrial environments and unprotected outdoor areas, grey, Ui=1000 V AC, without terminalsDimensions:127 x 127 x 75mmIncluded accessories:4 double membrane nozzles IP66 M32 sealing range 13-21mm, cover loss protection

Property	Value
Protection class (IP):	IP66/IP67/IP69
Length:	127 mm
Width:	127 mm
Weight:	163.67
Weight unit:	KG
Mounting type:	Wall/ceiling mounting
Color:	gray
Version:	Connection box
Halogen-free:	yes
Depth:	75 mm
Shape:	square
Surface:	untreated
Equipment:	without
Rated insulation voltage Ui:	1000 V
Sealable:	yes
Functional integrity:	without
Operating temperature:	-35 - 80 °C
Material:	Plastic
Number of entries:	8
Cover fastening:	screwed
Max. Conductor cross-section:	6 mm²
Weatherproof:	yes
Insertion from the rear:	yes
For Ex-Zone Gas:	without
Type of housing feedthrough:	Pre-knocked
For Ex zone dust:	without
Cover design:	without
Protection class (NEMA):	other
Brief description:	Junction box, Type of protection IP66/IP67/IP69, max. 6², IK09, Protection class II, Ui 1000V AC, Ui 1000V DC, DLG, DNV, Halogen free

Characteristics

HABAbox Pro 060 AB-L IP66/IP67/IP69

Manufacturer

HAN40640101

GTIN4013902664245

VersionJunction box

Cover designWithout

Rated insulation voltage Ui1000V

Width127 mm

Operating temperature-35 - 80 °C

Color

ShapeSquare

Functional preservationWithout

Weight163,67

Weight unit kg

Halogen freeYes

Short descriptionJunction box, Type of protection IP66/IP67/IP69, max. 6², IK09, Protection class II, Ui 1000V AC, Ui 1000V DC, DLG, DNV, Halogen free

Length127 mm

Mounting typeWall/ceiling mounting

SurfaceUntreated

IP protection)IP66/IP67/IP69

Protection class (NEMA)Other

Depth75 mm

MaterialPlastic
