Spelsberg 40647001 Abox Pro SLK-6 IP66/IP67/IP69 junction box

Spelsberg 40647001 Abox Pro SLK-6 IP66/IP67/IP69 junction box

In stock

SKU: 1061025

Price on request

€24.68

€0

Overview

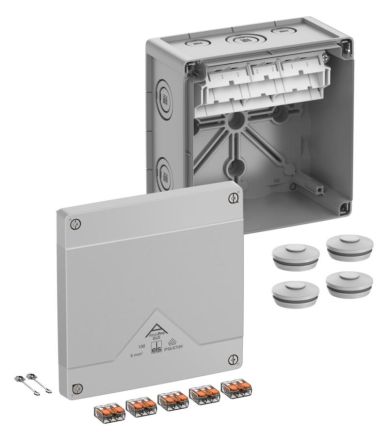

Junction box, with protection class IP66/IP67/IP69, nominal cross-section 6mm², Ui=450 V AC, certified by (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (ammonia resistance), DNV (class: ships & offshore installations), deflection membranes, M20/M25/M32, (2 rear, 10 side), internal fastening points, with screwless terminals for installations in industrial environments and unprotected outdoor areas, grey, In=41 A, with 5 high-mounted, screwless 3-conductor terminals type Wago 221-613-6mm², clampable cross-sections per pole: 3 x 0.2 to 6mm² rigid/flexible CuDimensions:152 x 152 x 85mmIncluded accessories:4 Double membrane socket IP66 M32 sealing range 13-21mm, cover loss protection

Property	Value
Protection class (IP):	IP66/IP67/IP69
Length:	152 mm
Width:	152 mm
Weight:	181.29
Weight unit:	KG
Mounting type:	Wall/ceiling mounting
Color:	gray
Version:	Connection box
Halogen-free:	yes
Depth:	85 mm
Shape:	square
Surface:	untreated
Equipment:	Plug-in terminal
Rated insulation voltage Ui:	450 V
Sealable:	yes
Functional integrity:	without
Operating temperature:	-35 - 80 °C
Material:	Plastic
Number of entries:	12
Cover fastening:	screwed
Max. Conductor cross-section:	6 mm²
Weatherproof:	yes
Insertion from the rear:	yes
For Ex-Zone Gas:	without
Type of housing feedthrough:	Pre-knocked
For Ex zone dust:	without
Cover design:	without
Protection class (NEMA):	other
Brief description:	Junction box, protection class IP66/IP67/IP69, max. 6², impact resistance IK09, Protection class II, Ui 450V AC, Ui 450V DC, DLG, DNV, halogen-free

Characteristics

HABAbox Pro SLK-6? IP66/IP67/IP69

Manufacturer

HAN40647001

GTIN4013902664061

VersionJunction box

Cover designWithout

Rated insulation voltage Ui450V

Width152 mm

Operating temperature-35 - 80 °C

Color

ShapeSquare

Functional preservationWithout

Weight181,29

Weight unit kg

Halogen freeYes

Short descriptionJunction box, protection class IP66/IP67/IP69, max. 6², impact resistance IK09, protection class II, Ui 450V AC, Ui 450V DC, DLG, DNV, halogen-free

Length152 mm

Mounting typeWall/ceiling mounting

SurfaceUntreated

IP protection)IP66/IP67/IP69

Protection class (NEMA)Other

Depth85 mm

MaterialPlastic
